M75010 PHOTOELECTRIC SMOKE DETECTOR

M75010 Description

www.DataSheet4U.com MOSDESIGN SEMICONDUCTOR CORP.SMOKE DETECTOR PHOTOELECTRIC SMOKE DETECTOR WITH INTERCONNECT GENERAL .
M75010 The M75010 is a very low-power IC providing all of the required features for a photoelectric type smoke detector.

M75010 Features

* for a photoelectric type smoke detector. This device can be used in conjunction with an infrared photoelectric chamber to sense scattered light from smoke particles. A variable-gain photo amplifier can be directly interfaced to an infrared emitter / detector pair. The amplifier gain levels are deter

M75010 Applications

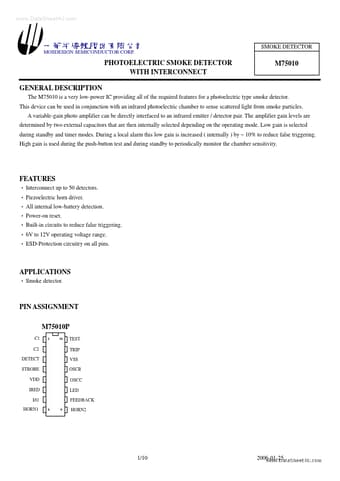

* ‧ Smoke detector. PIN ASSIGNMENT M75010P C1 C2 DETECT STROBE VDD IRED I/O HORN1 8 9 1 16 TEST TRIP VSS OSCR OSCC LED FEEDBACK HORN2 1/10 2006-01-25 MOSDESIGN SEMICONDUCTOR CORP. SMOKE DETECTOR PHOTOELECTRIC SMOKE DETECTOR WITH INTERCONNECT ABSOLUTE MAXIMUM RATING Parameter Supply Voltage Ran
