2N3295 NPN silicon annular Star transistor

2N3295 Description

2N3295 (SILICON) NPN silicon annular Star transistor for linear amplifier applications from 2.0 to 100 MHz.CASE 31 (TO-S) Collector connected to cas.

2N3295 Applications

* from 2.0 to 100 MHz. CASE 31 (TO-S) Collector connected to case MAXIMUM RATINGS
* Rating Collector-Base Voltage Collector-Emitter Voltage Emitter-Base Voltage Collector Current (Continuous) Base Current (Continuous) Total Device Dissipation (25°C Case Temperature) Derate above 25°C Total Device

📥 Download Datasheet

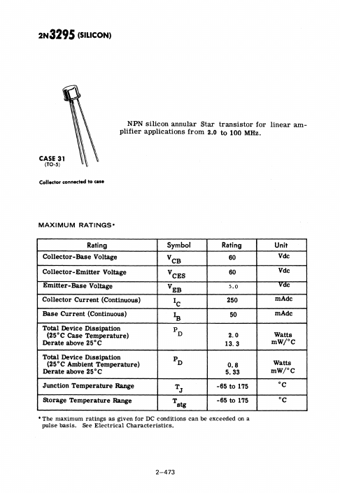

Preview of 2N3295 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
2N3295
Manufacturer
Motorola
File Size
164.76 KB
Datasheet
2N3295-Motorola.pdf
Description
NPN silicon annular Star transistor
