2N442 - PNP Transistor

Download the 2N442 datasheet PDF (2N441 included). The manufacturer datasheet provides complete specifications, pinout details, electrical characteristics, and typical applications for pnp transistor.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (2N441-Motorola.pdf) that lists specifications for multiple related part numbers.

📁 Similar Datasheet

  • 2N4424 - SILICON TRANSISTORS (ETC)
  • 2N4424 - SILICON NPN TRANSISTORS (Central Semiconductor)
  • 2N4427 - Silicon Planar NPN Transistor (STMicroelectronics)
  • 2N4427 - RF & MICROWAVE DISCRETE LOW POWER TRANSISTORS (Microsemi Corporation)
  • 2N4427 - Silicon planar epitaxial overlay transistors (NXP)
  • 2N4427 - SILICON NPN RF TRANSISTOR (Central Semiconductor Corp)
  • 2N4427 - NPN SILICON HIGH FREQUENCY TRANSISTOR (ASI)
  • 2N4427 - RF & MICROWAVE DISCRETE LOW POWER TRANSISTORS (Advanced Power Technology)
  • 2N4428 - NPN SILICON HIGH FREQUENCY TRANSISTOR (Advanced Semiconductor)
  • 2N4429 - NPN SILICON RF POWER TRANSISTOR (Advanced Semiconductor)
Other Datasheets by Motorola
  • 2N4427 - HIGH FREQUENCY TRANSISTOR
  • 2N4428 - NPN SILICON RF POWER TRANSISTOR
  • 2N4400 - GENERAL PURPOSE TRANSISTOR
  • 2N4401 - GENERAL PURPOSE TRANSISTOR
  • 2N4402 - PNP Transistor
  • 2N4403 - GENERAL PURPOSE TRANSISTOR
  • 2N4404 - GENERAL PURPOSE TRANSISTOR
  • 2N4405 - GENERAL PURPOSE TRANSISTOR

Full PDF Text Transcription

Click to expand full text

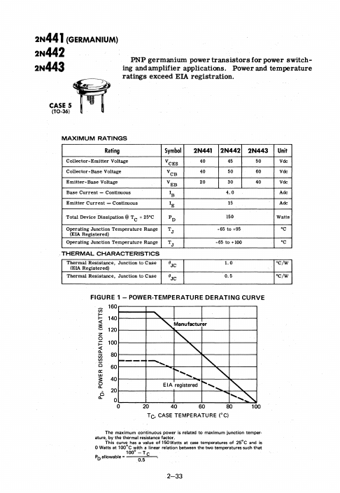

2N441 (GERMANIUM) 2N442 2N443 ~ CASE 5 (10-36) . PNP germanium power transistors for power switching and amplifier applications. Power and temperature ratings exceed EIA registration. MAXIMUM RATINGS Rating Collector-Emitter Voltage Collector-Base Voltage Emitter-Base Voltage Base Current - Continuous Emitter Current - Continuous Symbol VCES VCB VEB IB IE Total Device Dissipation @ TC = 25°C PD Operating Junction Temperature Range TJ (EIA Registered) Operating Junction Te.mperature Range TJ THERMAL CHARACTERISTICS Thermal Resistance, Junction to Case 8JC (EIA Registered) Thermal Resistance, Junction to Case 8JC 2N441 2N442 2N443 Unit 40 45 50 Vdc 40 50 60 Vdc 20 30 40 Vdc 4.0 Adc 15 Adc 150 -65 to +95 Watts °c -65 to + 100 °c 1.0 °C/W 0.
