MC74HC126A - Quad 3-State Noninverting Buffers

Download the MC74HC126A datasheet PDF. This datasheet also covers the MC74HC125A variant, as both devices belong to the same quad 3-state noninverting buffers family and are provided as variant models within a single manufacturer datasheet.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (MC74HC125A_Motorola.pdf) that lists specifications for multiple related part numbers.

📁 Similar Datasheet

Part Number Description Manufacturer
MC74HC126A Quad 3-State Noninverting Buffers ON Semiconductor
MC74HC125A Quad 3-State Noninverting Buffers ON Semiconductor
MC74HC125N CMOS Bus Buffer Gates ETC
MC74HC10A Triple 3-Input NAND Gate ON Semiconductor
MC74HC112A Dual J-K Flip-Flop ON Semiconductor

Other Datasheets by Motorola Semiconductor (now NXP Semiconductors)

Part Number Description
MC74HC125A Quad 3-State Noninverting Buffers
MC74HC11 Triple 3-Input AND Gate
MC74HC11A Triple 3-Input AND Gate
MC74HC132A Quad 2-Input NAND Gate
MC74HC133 13-Input NAND Gate

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

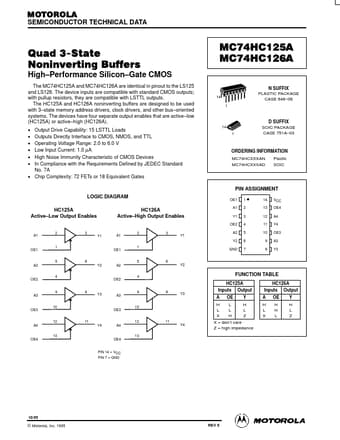

MOTOROLA SEMICONDUCTOR TECHNICAL DATA Quad 3-State Noninverting Buffers High–Performance Silicon–Gate CMOS The MC74HC125A and MC74HC126A are identical in pinout to the LS125 and LS126. The device inputs are compatible with standard CMOS outputs; with pullup resistors, they are compatible with LSTTL outputs. The HC125A and HC126A noninverting buffers are designed to be used with 3–state memory address drivers, clock drivers, and other bus–oriented systems. The devices have four separate output enables that are active–low (HC125A) or active–high (HC126A). • Output Drive Capability: 15 LSTTL Loads • Outputs Directly Interface to CMOS, NMOS, and TTL • Operating Voltage Range: 2.0 to 6.0 V • Low Input Current: 1.
