MUR3040 - Power Rectifier

Features

  • Ultrafast 100 Nanosecond Recovery Time.
  • 175°C Operating Junction Temperature.
  • High Voltage Capability to 400 Volts.
  • Low Forward Voltage Drop.
  • High Temperature Glass Passivated Junction Mechanical Characteristics.
  • Case: Epoxy, Molded.
  • Weight: 4.3 grams (approximately).
  • Finish: All External Surfaces Corrosion Resistant and Terminal Leads are Readily Solderable.
  • Lead Temperature for Soldering Purposes: 260°C Max. for.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
MUR3040 30A GLASS PASSIVATED SUPERFAST RECTIFIER Won-Top
MUR3040 Ultrafast Recovery Rectifier Inchange Semiconductor
MUR3040 30A ULTRA FAST RECTIFIERS Digitron Semiconductors
MUR3040 Ultra Fast Recovery Diodes Sirectifier
MUR3040 Power Rectifier ON Semiconductor

Other Datasheets by Motorola Semiconductor (now NXP Semiconductors)

Part Number Description
MUR3040PT ULTRAFAST RECTIFIERS
MUR3040WT ULTRAFAST RECTIFIERS
MUR3005PT Switchmode Power Rectifiers
MUR3010PT Switchmode Power Rectifiers
MUR3015PT Switchmode Power Rectifiers

Full PDF Text Transcription

Click to expand full text

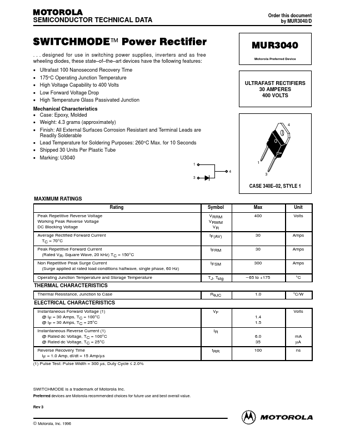

MOTOROLA SEMICONDUCTOR TECHNICAL DATA SWITCHMODE™ Power Rectifier . . . designed for use in switching power supplies, inverters and as free wheeling diodes, these state–of–the–art devices have the following features: • Ultrafast 100 Nanosecond Recovery Time • 175°C Operating Junction Temperature • High Voltage Capability to 400 Volts • Low Forward Voltage Drop • High Temperature Glass Passivated Junction Mechanical Characteristics • Case: Epoxy, Molded • Weight: 4.3 grams (approximately) • Finish: All External Surfaces Corrosion Resistant and Terminal Leads are Readily Solderable • Lead Temperature for Soldering Purposes: 260°C Max.
