LQH2HPN150MJR# “#” indicates a package specification code.
< List of part numbers with package codes >
LQH2HPN150MJRL
Shape
L size W size T size Size code in inch (mm)
2.5 ±0.2mm 2.0 ±0.2mm 1.1 ±0.1mm 1008 (2520)
Notes
When rated current is applied to the products, inductance will be within ±30% of initial inductance value range. Keep the temperature (ambient temperature plus self-generation of heat) under 125°C. When rated current is applied to the products, the self-temperature rise shall be limited to 40°C max. (ambient temperature 85°C). When rated current is applied to the products, the self-temperature rise shall be limited to 20°C max. (ambient temperature 85 °C to 105°C).

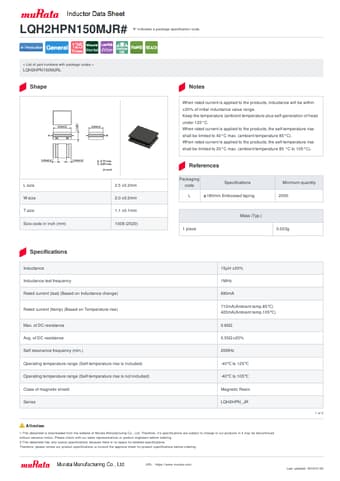

LQH2HPN150MJRL Datasheet
