MJ10012 NPN Silicon Power Darlington Transistor

MJ10012 Description

MJ10012 NPN Silicon Power Darlington Transistor TO3 Type Package .
The MJ10012 is high. voltage, high. current Darlington transistor in a TO3 type package designed for automotive ignition, switching reg.

MJ10012 Features

* D Collector
* Emitter Sustaining Voltage: VCEO(sus) = 400Vdc (Min) D 175 Watts Capability at 50 Volts Absolute Maximum Ratings: Collector
* Emitter Voltage, VCEO
* . . . 400V Collector
* Emit

📥 Download Datasheet

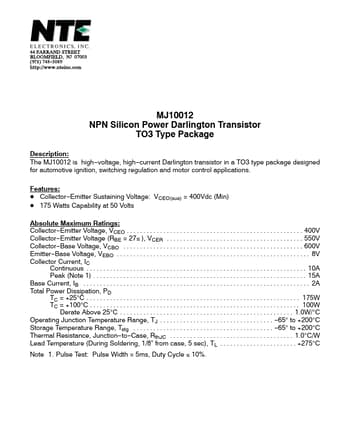

Preview of MJ10012 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
MJ10012
Manufacturer
NTE
File Size
54.93 KB
Datasheet
MJ10012-NTE.pdf
Description
NPN Silicon Power Darlington Transistor
