NTE335 - Silicon NPN Transistor

Description

The NTE335 and NTE336 are silicon NPN RF power transistors designed for power amplifier applications in industrial, commercial and amateur radio equipment to 30MHz.

Features

  • D Specified 12.5V, 30MHz Characteristics: Output Power = 80W Minimum Gain = 12dB Efficiency = 50% D Available in Two Different Package Designs: NTE335 (W52N, Flange Mount) NTE336 (T93D, Stud Mount) Absolute Maximum Ratings: Collector.
  • Emitter Voltage, VCEO.
  • . . . . 25V Collector.
  • Base Voltage, VCBO.

📥 Download Datasheet

Datasheet Details

Part number NTE335
Manufacturer NTE
File Size 55.78 KB
Description Silicon NPN Transistor
Datasheet download datasheet NTE335 Datasheet

📁 Similar Datasheet

  • NTE30002 - (NTE30002 - NTE30004) Light Emitting Diode (NTE Electronics)
  • NTE30003 - (NTE30002 - NTE30004) Light Emitting Diode (NTE Electronics)
  • NTE30004 - (NTE30002 - NTE30004) Light Emitting Diode (NTE Electronics)
  • NTE30005 - (NTE30005 - NTE30007) Light Emitting Diode (NTE Electronics)
  • NTE30006 - (NTE30005 - NTE30007) Light Emitting Diode (NTE Electronics)
  • NTE30007 - (NTE30005 - NTE30007) Light Emitting Diode (NTE Electronics)
  • NTE30008 - (NTE30008 - NTE30010) Light Emitting Diode (NTE Electronics)
  • NTE30009 - (NTE30008 - NTE30010) Light Emitting Diode (NTE Electronics)
  • NTE30010 - (NTE30008 - NTE30010) Light Emitting Diode (NTE Electronics)
  • NTE30011 - (NTE30011 - NTE30013) Light Emitting Diode (NTE Electronics)
Other Datasheets by NTE
  • NTE330 - Germanium PNP Transistor
  • NTE3300 - Insulated Gate Bipolar Transistor
  • NTE3301 - Insulated Gate Bipolar Transistor
  • NTE3302 - Insulated Gate Bipolar Transistor
  • NTE3303 - Insulated Gate Bipolar Transistor
  • NTE331 - Silicon Complementary Transistors
  • NTE3310 - Insulated Gate Bipolar Transistor
  • NTE3311 - Insulated Gate Bipolar Transistor

Full PDF Text Transcription

Click to expand full text

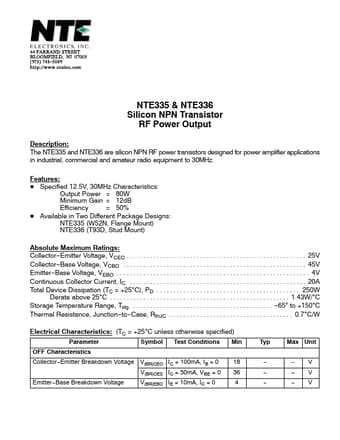

NTE335 & NTE336 Silicon NPN Transistor RF Power Output Description: The NTE335 and NTE336 are silicon NPN RF power transistors designed for power amplifier applications in industrial, commercial and amateur radio equipment to 30MHz. Features: D Specified 12.5V, 30MHz Characteristics: Output Power = 80W Minimum Gain = 12dB Efficiency = 50% D Available in Two Different Package Designs: NTE335 (W52N, Flange Mount) NTE336 (T93D, Stud Mount) Absolute Maximum Ratings: Collector−Emitter Voltage, VCEO . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25V Collector−Base Voltage, VCBO . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45V Emitter−Base Voltage, VEBO . . . .
