74HCT4520 - Dual 4-Bit Synchronous Binary Counter

This page provides the datasheet information for the 74HCT4520, a member of the 74HC4520 Dual 4-Bit Synchronous Binary Counter family.

Description

The 74HC4520; 74HCT4520 are dual 4-bit internally synchronous binary counters with two clock inputs (nCP0 and nCP1).

They have buffered outputs from all 4 bit positions (nQ0 to nQ3) and an asynchronous master reset input (nMR).

Features

  • Complies with JEDEC standard no. 7A.
  • Input levels:.
  • For 74HC4520: CMOS level.
  • For 74HCT4520: TTL level.
  • ESD protection:.
  • HBM JESD22-A114F exceeds 2000 V.
  • MM JESD22-A115-A exceeds 200 V.
  • Multiple package options.
  • Specified from 40 C to +85 C and 40 C to +125 C 3.

📥 Download Datasheet

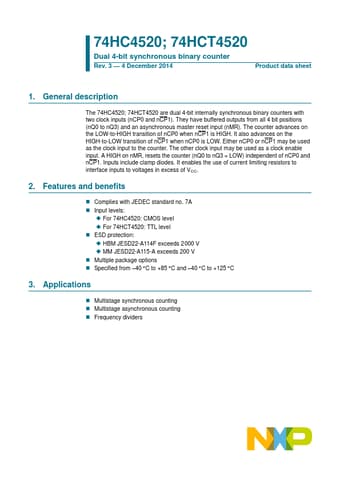

Datasheet preview – 74HCT4520

Datasheet Details

Part number 74HCT4520
Manufacturer NXP Semiconductors
File Size 162.98 KB
Description Dual 4-Bit Synchronous Binary Counter
Datasheet download datasheet 74HCT4520 Datasheet
Additional preview pages of the 74HCT4520 datasheet.

📁 Similar Datasheet

  • 74HCT4520 - Dual 4-bit synchronous binary counter (nexperia)
  • 74HCT4520-Q100 - Dual 4-bit synchronous binary counter (NXP)
  • 74HCT4520-Q100 - Dual 4-bit synchronous binary counter (nexperia)
  • 74HCT4520D - Dual 4-bit synchronous binary counter (nexperia)
  • 74HCT4510 - BCD up/down counter (Philips)
  • 74HCT4511 - BCD to 7-segment latch/decoder/driver (nexperia)
  • 74HCT4511D - BCD to 7-segment latch/decoder/driver (nexperia)
  • 74HCT4514 - 4-to-16 line decoder/demultiplexer (nexperia)
  • 74HCT4514D - 4-to-16 line decoder/demultiplexer (nexperia)
  • 74HCT4515 - 4-to-16 line decoder/demultiplexer (Philips)
Other Datasheets by NXP Semiconductors
  • 74HCT4510 - BCD up/down counter
  • 74HCT4511 - BCD to 7-segment latch/decoder/driver
  • 74HCT4514 - 4-to-16 line decoder/demultiplexer
  • 74HCT4515 - 4-to-16 line decoder/demultiplexer
  • 74HCT4516 - Binary up/down counter
  • 74HCT4518 - Dual synchronous BCD counter
  • 74HCT4538 - Dual retriggerable precision monostable multivibrator
  • 74HCT4543 - BCD to 7-segment latch/decoder/driver

Full PDF Text Transcription

Click to expand full text
74HC4520; 74HCT4520 Dual 4-bit synchronous binary counter Rev. 3 — 4 December 2014 Product data sheet 1. General description The 74HC4520; 74HCT4520 are dual 4-bit internally synchronous binary counters with two clock inputs (nCP0 and nCP1). They have buffered outputs from all 4 bit positions (nQ0 to nQ3) and an asynchronous master reset input (nMR). The counter advances on the LOW-to-HIGH transition of nCP0 when nCP1 is HIGH. It also advances on the HIGH-to-LOW transition of nCP1 when nCP0 is LOW. Either nCP0 or nCP1 may be used as the clock input to the counter. The other clock input may be used as a clock enable input. A HIGH on nMR, resets the counter (nQ0 to nQ3 = LOW) independent of nCP0 and nCP1. Inputs include clamp diodes.
