54LS244 - Octal TRI-STATE Buffers/Line Drivers/Line Receivers

Description

These buffers line drivers are designed to improve both the performance and PC board density of TRI-STATE buffers drivers employed as memory-address drivers clock drivers and bus-oriented transmitters receivers Featuring 400 mV of hysteresis at each low current PNP data line input they provide impro

Features

  • Y TRI-STATE outputs drive bus lines directly Y PNP inputs reduce DC loading on bus lines Y Hysteresis at data inputs improves noise margins Y Typical IOL (sink current) 54LS 12 mA 74LS 24 mA Y Typical IOH (source current) 54LS b12 mA 74LS b15 mA Y Typical propagation delay times Inverting 10 5 ns Noninverting 12 ns Y Typical enable disable time 18 ns Y Typical power dissipation (enabled) Inverting 130 mW Noninverting 135 mW Connection Diagram Dual-In-Line Package TL F 8442.

📥 Download Datasheet

📁 Similar Datasheet

  • 54LS240 - LSTTL eight-Buffer / Bus Driver (BDTIC)
  • 54LS241 - (54LS240) Octal Buffer (Signetics)
  • 54LS245 - Octal Bus Transceivers (Texas Instruments)
  • 54LS245D2 - Octal Bus Transceiver (SGS-Thomson)
  • 54LS21 - DUAL 4-INPUT AND GATE (Motorola)
  • 54LS22 - DUAL 4-INPUT NAND GATE (Motorola)
  • 54LS256 - DUAL 4-BIT ADDRESSABLE LATCH (Motorola)
  • 54LS257B - QUAD 2-INPUT MULTIPLEXER (Motorola)
  • 54LS257B - QUADRUPLE 2-LINE TO 1-LINE DATA SELECTORS/MULTIPLEXERS (Texas Instruments)
  • 54LS258B - QUAD 2-INPUT MULTIPLEXER (Motorola)
Other Datasheets by National Semiconductor
  • 54LS240 - Octal TRI-STATE Buffer / Line Drivers / Line Receivers
  • 54LS20 - Dual 4-Input NAND Gates
  • 54LS21 - Dual 4-Input AND Gates
  • 54LS22 - Dual 4-Input NAND Gates
  • 54LS256 - Dual 4-Bit Addressable Latch
  • 54LS257A - TRI-STATE Quad 2-Data Selectors/Multiplexers
  • 54LS257B - Quad 2-Data Selectors/Multiplexers
  • 54LS258A - TRI-STATE Quad 2-Data Selectors/Multiplexers

Full PDF Text Transcription

Click to expand full text

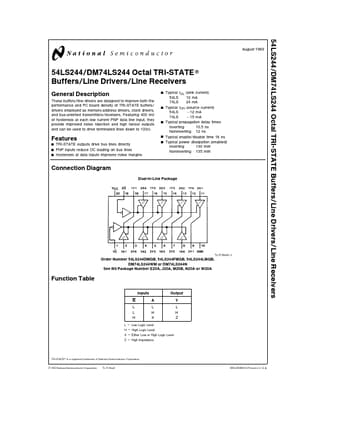

54LS244 DM74LS244 Octal TRI-STATE Buffers Line Drivers Line Receivers August 1989 54LS244 DM74LS244 Octal TRI-STATE Buffers Line Drivers Line Receivers General Description These buffers line drivers are designed to improve both the performance and PC board density of TRI-STATE buffers drivers employed as memory-address drivers clock drivers and bus-oriented transmitters receivers Featuring 400 mV of hysteresis at each low current PNP data line input they provide improved noise rejection and high fanout outputs and can be used to drive terminated lines down to 133X Features Y TRI-STATE outputs drive bus lines directly Y PNP inputs reduce DC loading on bus lines Y Hysteresis at data inputs improves noise margins Y Typical IOL (sink current) 54LS 12 mA 74LS 24 mA Y Typical IOH (source c
