DSV14196 Datasheet - National Semiconductor

+3.3V Supply EIA/TIA-232 5 Driver x 3 Receiver

DSV14196 Features

* Conforms to EIA/TIA-232-E and ITU-T V.28 5 drivers and 3 receivers Flow-through pinout Failsafe receiver outputs high when inputs open 20-pin wide SOIC package LapLink ® compatible

* 230.4 kbps data rate +3.3V Logic Interface Commercial temperature range option DSV14196 (0˚C to 70˚C) n Indus

DSV14196 General Description

The DSV14196/DSV14196T is a five driver, three receiver device which conforms to the EIA/TIA-232-E and the ITU-T V.28 standards. The flow-through pinout facilitates simple non-crossover board layout. The DSV14196/DSV14196T provides a peripheral side one-chip solution for the common 9-pin serial RS-2.

DSV14196 Datasheet (153.49 KB)

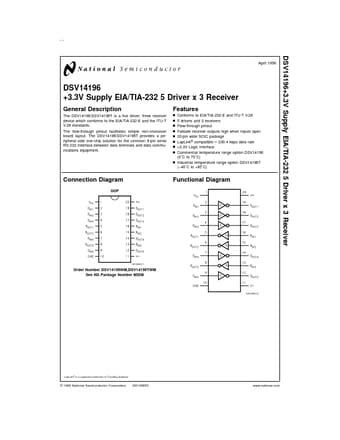

Preview of DSV14196 PDF

Datasheet Details

Part number:

DSV14196

Manufacturer:

National Semiconductor

File Size:

153.49 KB

Description:

+3.3v supply eia/tia-232 5 driver x 3 receiver.
