LM260 - Voltage Comparators

Features

  • The LM160/LM260/LM360 IS a very high speed differential Input, complementary TTL output voltage comparator with improved characterIStics over the JJ. A7601JJ. A760C, for which It is a pin-forpin replacement. The device has been optimIZed for greater speed, input Impedance and fan.
  • out, and lower Input offset voltage. Typically delay varies only 3 ns for overdrive variations of 5 mV to 500 mV. Complementary outputs having minimum skew are provided.

📥 Download Datasheet

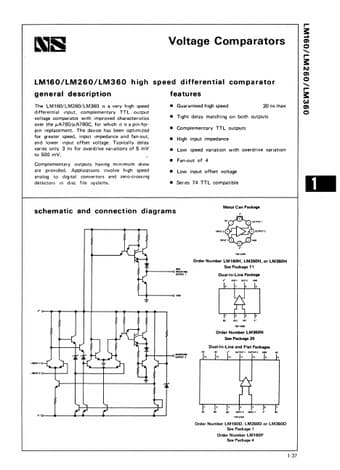

Datasheet preview – LM260
