LM318 - Operational Amplifiers

This page provides the datasheet information for the LM318, a member of the LM318N Operational Amplifiers family.

Datasheet Summary

Description

The LM118 series are precision high speed operational amplifiers designed for applications requiring wide bandwidth and high slew rate.

They feature a factor of ten increase in speed over general purpose devices without sacrificing DC performance.

📥 Download Datasheet

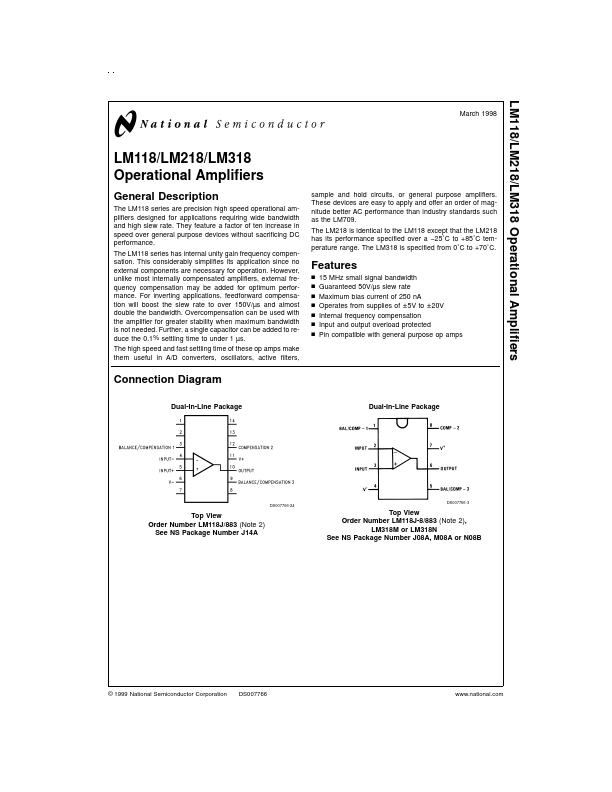

Datasheet preview – LM318

Datasheet Details

Part number LM318
Manufacturer National Semiconductor
File Size 515.45 KB
Description Operational Amplifiers
Datasheet download datasheet LM318 Datasheet

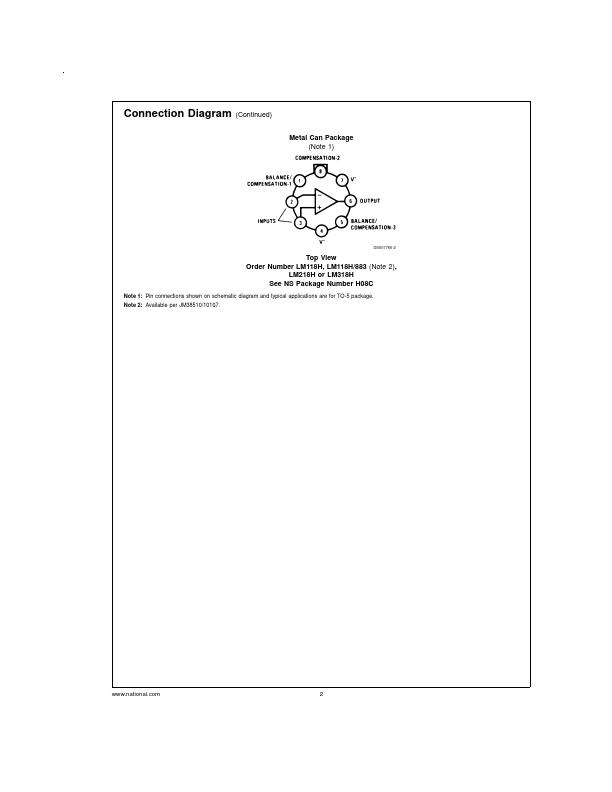

Additional preview pages of the LM318 datasheet.
