LM380, Audio Power Amplifier

The LM380 is a power audio amplifier for consumer application. In order to hold system cost to a minimum, gain is internally fixed at 34 dB. A unique input stage allows inputs to be ground referenced. The output is automatically self centering to one half the supply voltage. The output is short circ.

LM380_NationalSemiconductor.pdf

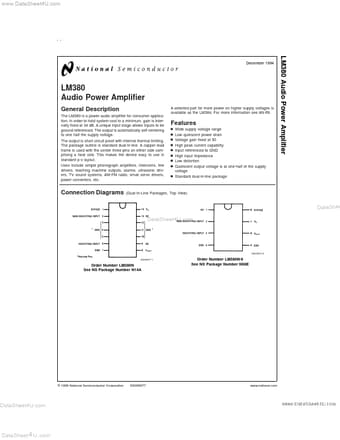

LM380 Datasheet Preview — Preview of LM380 PDF

Datasheet Details

Part number:

LM380

Manufacturer:

National Semiconductor

File Size:

425.99 KB

Description:

Audio Power Amplifier

LM380 Features

* Wide supply voltage range Low quiescent power drain Voltage gain fixed at 50 High peak current capability Input referenced to GND High input impedance Low distortion Quiescent output voltage is at one-half of the supply voltage n Standard dual-in-line package n n n n n n n n Connection Diagrams (D
