LP8340, Low Dropout/ Low IQ/ 1.0A CMOS Linear Regulator

The LP8340 low-dropout CMOS linear regulator is available in 5V, 3.3V, 2.5V, 1.8V and adjustable output versions. Packaged in the 6ld LLP package and 3ld DPAK. The LP8340 can deliver up to 1.0A output current. Typical dropout voltage is 420mV at 1.0A for the 5.0V version, 540mV at 1.0A for the 3.3V .

LP8340_NationalSemiconductor.pdf

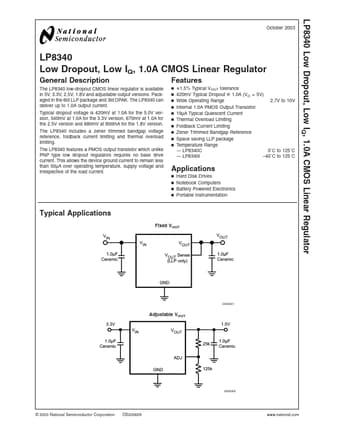

LP8340 Datasheet Preview — Preview of LP8340 PDF

Datasheet Details

Part number:

LP8340

Manufacturer:

National Semiconductor

File Size:

304.76 KB

Description:

Low Dropout/ Low IQ/ 1.0A CMOS Linear Regulator

LP8340 Features

* a PMOS output transistor which unlike PNP type low dropout regulators requires no base drive current. This allows the device ground current to remain less than 50µA over operating temperature, supply voltage and irrespective of the load current. Features n n n n n n n n n n ± 1.5% Typical VOUT tol
