MM74C165 Datasheet - National Semiconductor

Parallel-Load 8-Bit Shift Register

MM74C165 Features

* Y Wide supply voltage range Y Guaranteed noise margin Y High noise immunity Y Low power TT

MM74C165 General Description

The MM54C165 MM74C165 functions as an 8-bit parallelload serial shift register Data is loaded into the register independent of the state of the clock(s) when PARALLEL LOAD (PL) is low Shifting is inhibited as long as PL is low Data is sequentially shifted from complementary outputs Q7 and Q7 highest.

MM74C165 Datasheet (91.40 KB)

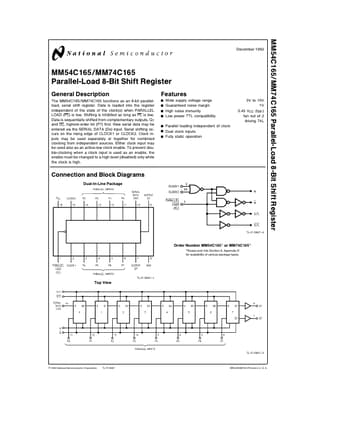

MM74C165 Datasheet Preview — Preview of MM74C165 PDF

Datasheet Details

Part number:

MM74C165

Manufacturer:

National Semiconductor

File Size:

91.40 KB

Description:

Parallel-load 8-bit shift register.
