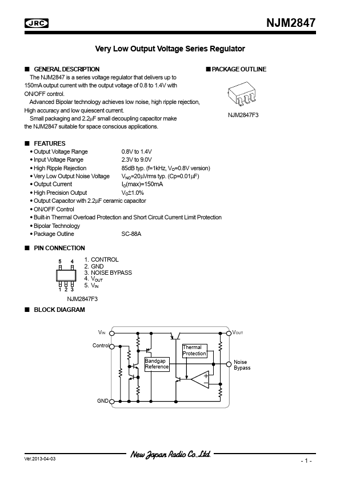

NJM2847
DESCRIPTION
The NJM2847 is a series voltage regulator that delivers up to 150m A output current with the output voltage of 0.8 to 1.4V with ON/OFF control. Advanced Bipolar technology achieves low noise, high ripple rejection, High accuracy and low quiescent current. Small packaging and 2.2µF small decoupling capacitor make the NJM2847 suitable for space conscious applications.
PACKAGE OUTLINE NJM2847F3
FEATURES
- Output Voltage Range
0.8V to 1.4V
- Input Voltage Range
2.3V to 9.0V
- High Ripple Rejection
85d B typ. (f=1k Hz, VO=0.8V version)
- Very Low Output Noise Voltage VNO=20µVrms typ. (Cp=0.01µF)
- Output Current
IO(max)=150m A
- High Precision Output
VO±1.0%
- Output Capacitor with 2.2µF ceramic capacitor
- ON/OFF Control
- Built-in Thermal Overload Protection and Short Circuit Current Limit Protection
- Bipolar Technology
- Package Outline
SC-88A
PIN CONNECTION
54 123
1....
