NSVA468 - SAW FILTER

New Japan Radio

Datasheet Details

Part number	NSVA468
Manufacturer	New Japan Radio
File Size	125.89 KB
Description	SAW FILTER
Datasheet	NSVA468 Datasheet
Additional preview pages of the NSVA468 datasheet.

📁 Similar Datasheet

NSVA468 - JRC SAW FILTER (ETC)
NSVA288 - JRC SAW FILTER (ETC)
NSV1C200L - PNP Transistor (ON Semiconductor)
NSV1C200MZ4 - PNP Transistor (ON Semiconductor)
NSV1C201MZ4 - NPN Transistor (ON Semiconductor)
NSV1C300CT - Bipolar Power Transistors (ON Semiconductor)
NSV1SS400T1G - High-Speed Switching Diode (ON Semiconductor)
NSV40200L - PNP Transistor (ON Semiconductor)
NSV40201LT1G - NPN Transistor (ON Semiconductor)
NSV40501UW3 - NPN Transistor (ON Semiconductor)

Other Datasheets by New Japan Radio

NSVA488 - SAW FILTER
NSVA253 - SAW FILTER
NSVA254 - SAW FILTER
NSVA276 - SAW FILTER
NSVA277 - SAW FILTER
NSVA279 - SAW FILTER
NSVA288 - SAW FILTER
NSVA300 - SAW FILTER

Full PDF Text Transcription

Click to expand full text

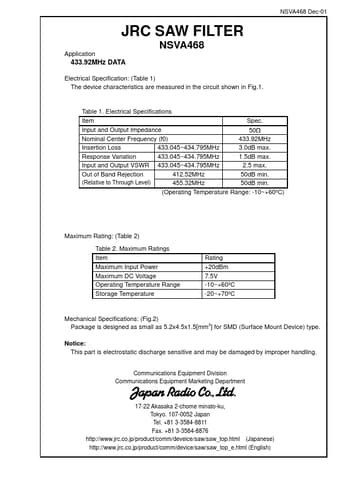

JRC SAW FILTER Application 433.92MHz DATA NSVA468 Electrical Specification: (Table 1) The device characteristics are measured in the circuit shown in Fig.1. NSVA468 Dec-01 Table 1. Electrical Specifications Item Spec. Input and Output Impedance 50Ω Nominal Center Frequency (f0) 433.92MHz Insertion Loss 433.045~434.795MHz 3.0dB max. Response Variation 433.045~434.795MHz 1.5dB max. Input and Output VSWR 433.045~434.795MHz 2.5 max. Out of Band Rejection 412.52MHz 50dB min. (Relative to Through Level) 455.32MHz 50dB min. (Operating Temperature Range: -10~+60ºC) Maximum Rating: (Table 2) Table 2. Maximum Ratings Item Maximum Input Power Maximum DC Voltage Operating Temperature Range Storage Temperature Rating +20dBm 7.
