W682310

The W682310 is Dual-Channel Voiceband Codecs designed by Nuvoton Technology.

Product Overview

Nuvoton Technology

Part number	W682310, W682510
Manufacturer	Nuvoton Technology
File Size	379.54 KB
Description	Dual-Channel Voiceband Codecs
Datasheet	W682510_NuvotonTechnology.pdf
Note	This datasheet PDF includes multiple part numbers: W682310, W682510. Please refer to the document for exact specifications by model.

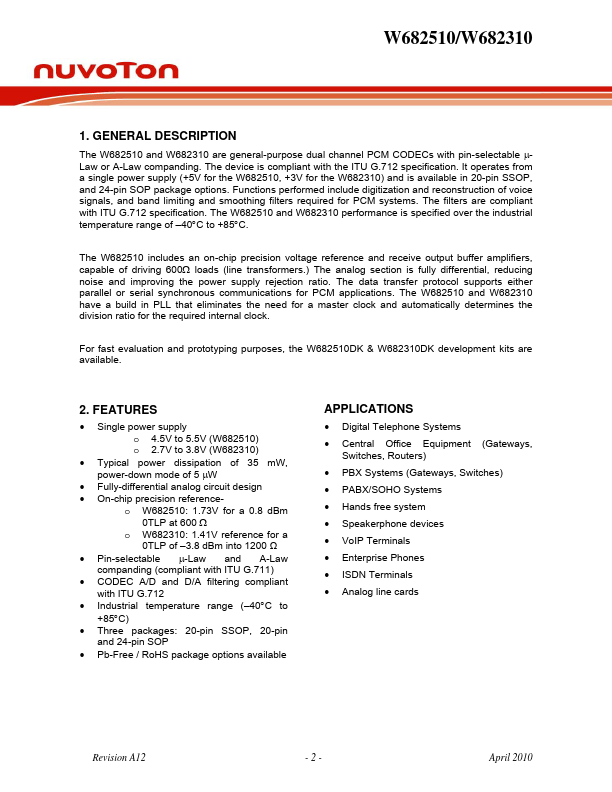

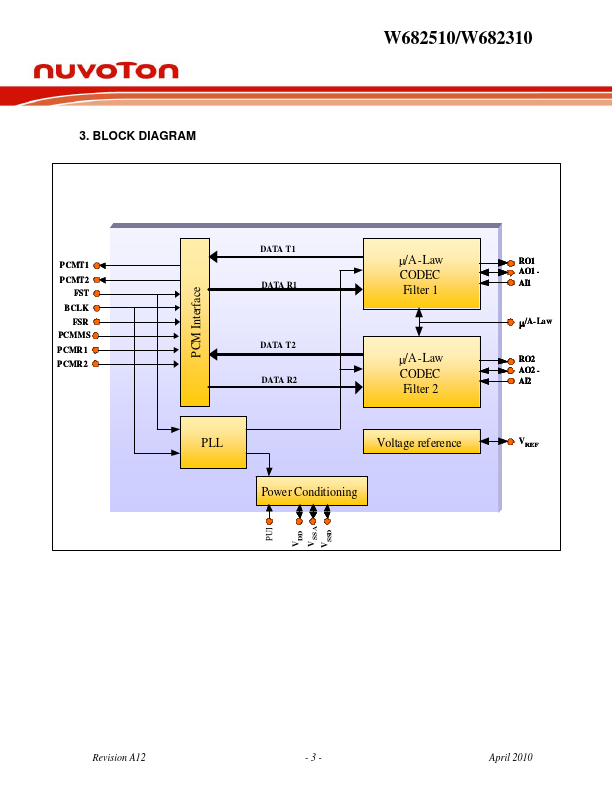

Additional preview pages of the W682310 datasheet.

The W682510 and W682310 are general-purpose dual channel PCM CODECs with pin-selectable μLaw or A-Law companding.

Single power supply o 4.5V to 5.5V (W682510) o 2.7V to 3.8V (W682310).
Typical power dissipation of 35 mW, power-down mode of 5 μW.
Fully-differential analog circuit design.
On-chip precision reference- o W682510: 1.73V for a 0.8 dBm 0TLP at 600 Ω o W682310: 1.41V reference for a 0TLP of.
3.8 dBm into 1200 Ω.
Pin-selectable μ-Law and A-Law companding (compliant with ITU G.711).
CODEC A/D and D/A filtering compliant with ITU G.712.
