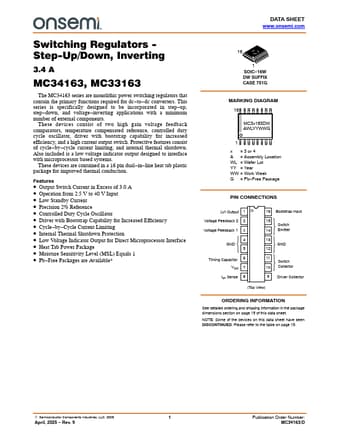

MC34163, MC33163
Switching Regulators -
Step-Up/Down, Inverting
3.4 A
The MC34163 series are monolithic power switching regulators that
contain the primary functions required for dctodc converters. This
series is specifically designed to be incorporated in stepup,
stepdown, and voltageinverting applications with a minimum
number of external components.
These devices consist of two high gain voltage feedback
comparators, temperature compensated reference, controlled duty
cycle oscillator, driver with bootstrap capability for increased
efficiency, and a high current output switch. Protective features consist
of cyclebycycle current limiting, and internal thermal shutdown.
Also included is a low voltage indicator output designed to interface
with microprocessor based systems.
These devices are contained in a 16 pin dualinline heat tab plastic
package for improved thermal conduction.
Features
Output Switch Current in Excess of 3.0 A
Operation from 2.5 V to 40 V Input
Low Standby Current
Precision 2% Reference
Controlled Duty Cycle Oscillator
Driver with Bootstrap Capability for Increased Efficiency
CyclebyCycle Current Limiting
Internal Thermal Shutdown Protection
Low Voltage Indicator Output for Direct Microprocessor Interface
Heat Tab Power Package
Moisture Sensitivity Level (MSL) Equals 1
PbFree Packages are Available*
Ipk Sense 8
VCC 7
Timing
Capacitor
6
- ILimit
+
+
OSC
9
Driver
Collector
10
Switch
Collector
11
5
GND
4
Control Logic
and Thermal
Shutdown
+
12
GND
13
Voltage
Feedback 1
3
Voltage
Feedback 2
2
LVI Output 1
LVI
+
+
-
VFB
+
+
-
+
14
Switch
Emitter
15
16
Bootstrap
Input
(Bottom View)
This device contains 114 active transistors.
Figure 1. Representative Block Diagram
© Semiconductor Components Industries, LLC, 2008
August, 2019 Rev. 6
1
16
1
http://onsemi.com
MARKING
DIAGRAMS
16
PDIP16 1
P SUFFIX
CASE 648C
MC3x163P
AWLYYWWG
16
16
1
MC3x163DW
AWLYYWWG
SOIC16W
DW SUFFIX
CASE 751G
1
x = 3 or 4
A = Assembly Location
WL = Wafer Lot
YY = Year
WW = Work Week
G = PbFree Package
PIN CONNECTIONS
LVI Output 1
Voltage Feedback 2 2
Voltage Feedback 1 3
4
GND
5
Timing Capacitor 6
VCC 7
Ipk Sense 8
16 Bootstrap Input
15 Switch
14 Emitter
13
GND
12
11
Switch Collector
10
9 Driver Collector
(Top View)
ORDERING INFORMATION
See detailed ordering and shipping information in the package
dimensions section on page 2 of this data sheet.
*For additional information on our PbFree strategy
and soldering details, please download the
ON Semiconductor Soldering and Mounting
Techniques Reference Manual, SOLDERRM/D.
Publication Order Number:
MC34163/D


  ON Semiconductor Electronic Components Datasheet

MC33163 Datasheet

Step-Up/Down/Inverting Switching Regulators

No Preview Available !

MC34163, MC33163
MAXIMUM RATINGS (Note 1)
Rating
Symbol
Value
Unit
Power Supply Voltage
Switch Collector Voltage Range
Switch Emitter Voltage Range
Switch Collector to Emitter Voltage
Switch Current (Note 2)
Driver Collector Voltage
Driver Collector Current
Bootstrap Input Current Range (Note 2)
Current Sense Input Voltage Range
Feedback and Timing Capacitor Input Voltage Range
Low Voltage Indicator Output Voltage Range
Low Voltage Indicator Output Sink Current
Thermal Characteristics
P Suffix, DualInLine Case 648C
Thermal Resistance, JunctiontoAir
Thermal Resistance, JunctiontoCase (Pins 4, 5, 12, 13)
DW Suffix, Surface Mount Case 751G
Thermal Resistance, JunctiontoAir
Thermal Resistance, JunctiontoCase (Pins 4, 5, 12, 13)
Operating Junction Temperature
Operating Ambient Temperature (Note 3)
MC34163
MC33163
VCC
VC(switch)
VE(switch)
VCE(switch)
ISW
VC(driver)
IC(driver)
IBS
VIpk (Sense)
Vin
VC(LVI)
IC(LVI)
40
1.0 to + 40
2.0 to VC(switch)
40
3.4
1.0 to +40
150
100 to +100
(VCC7.0) to (VCC+1.0)
1.0 to + 7.0
1.0 to + 40
10
RqJA
RqJC
RqJA
RqJC
TJ
TA
80
15
94
18
+150
0 to +70
40 to + 85
V
V
V
V
A
V
mA
mA
V
V
V
mA
°C/W
°C
°C
Storage Temperature Range
Tstg
65 to +150
°C
Maximum ratings are those values beyond which device damage can occur. Maximum ratings applied to the device are individual stress limit
values (not normal operating conditions) and are not valid simultaneously. If these limits are exceeded, device functional operation is not implied,
damage may occur and reliability may be affected.
1. This device series contains ESD protection and exceeds the following tests: Human Body Model 1500 V per MILSTD883, Method 3015.
Machine Model Method 150 V.
2. Maximum package power dissipation limits must be observed.
3. Low duty cycle pulse techniques are used during test to maintain junction temperature as close to ambient as possible.
ORDERING INFORMATION
Device
Package
Shipping
MC33163DW
SOIC16W
47 Units / Rail
MC33163DWG
SOIC16W
(PbFree)
47 Units / Rail
MC33163DWR2
SOIC16W
1000 Units / Reel
MC33163DWR2G
SOIC16W
(PbFree)
1000 Units / Reel
MC33163P
PDIP16
25 Units / Rail
MC33163PG
PDIP16
(PbFree)
25 Units / Rail
MC34163DW
SOIC16W
47 Units / Rail
MC34163DWG
SOIC16W
(PbFree)
47 Units / Rail
MC34163DWR2
SOIC16W
1000 Units / Reel
MC34163DWR2G
SOIC16W
(PbFree)
1000 Units / Reel
MC34163P
PDIP16
25 Units / Rail
MC34163PG
PDIP16
(PbFree)
25 Units / Rail
†For information on tape and reel specifications, including part orientation and tape sizes, please refer to our Tape and Reel Packaging
Specifications Brochure, BRD8011/D.
http://onsemi.com
2
