NCD57001 - Isolated High Current IGBT Gate Driver

Features

  • include complementary inputs, open drain FAULT and Ready outputs, active Miller clamp, accurate UVLOs, DESAT protection, and soft turn.
  • off at DESAT. NCD57001 accommodates both 5 V and 3.3 V signals on the input side and wide bias voltage range on the driver side including negative voltage capability. NCD57001 provides > 5 kVrms (UL1577 rating) galvanic isolation and > 1200 Viorm (working voltage) capabilities. NCD57001 is available in the wide.
  • body SOIC.
  • 16 package with gu.

📥 Download Datasheet

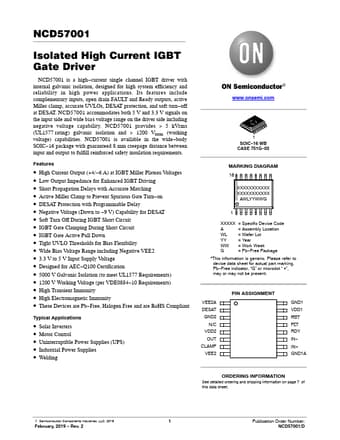

Datasheet preview – NCD57001

Datasheet Details

Part number NCD57001
Manufacturer ON Semiconductor
File Size 154.22 KB
Description Isolated High Current IGBT Gate Driver
Datasheet download datasheet NCD57001 Datasheet
Additional preview pages of the NCD57001 datasheet.

📁 Similar Datasheet

  • NCD1015ZG - Read-Only RFID Transponder (IXYS)
  • NCD1015ZP - Read-Only RFID Transponder (IXYS)
  • NCD103K500Y5PKTB - Ceramic Disc Capacitors (NIC Components)
  • NCD104M50Z5UF - Ceramic Disc Capacitors (NIC Components)
  • NCD2100 - Digital Programmable Capacitor (IXYS)
  • NCD2400M - Non-volatile Digital Programmable Capacitor (IXYS)
Other Datasheets by ON Semiconductor
  • NCD57001F - High Current IGBT Gate Driver
  • NCD5700 - High Current IGBT Gate Driver
  • NCD57000 - Isolated High Current IGBT Gate Driver
  • NCD5701A - High Current IGBT Gate Drivers
  • NCD5701B - High Current IGBT Gate Drivers
  • NCD5701C - High Current IGBT Gate Drivers
  • NCD5702 - High Current IGBT Gate Driver
  • NCD5703A - High Current IGBT Gate Drivers

Full PDF Text Transcription

Click to expand full text
NCD57001 Isolated High Current IGBT Gate Driver NCD57001 is a high−current single channel IGBT driver with internal galvanic isolation, designed for high system efficiency and reliability in high power applications. Its features include complementary inputs, open drain FAULT and Ready outputs, active Miller clamp, accurate UVLOs, DESAT protection, and soft turn−off at DESAT. NCD57001 accommodates both 5 V and 3.3 V signals on the input side and wide bias voltage range on the driver side including negative voltage capability. NCD57001 provides > 5 kVrms (UL1577 rating) galvanic isolation and > 1200 Viorm (working voltage) capabilities.
