NCP81258 Synchronous Buck MOSFET Driver

ON Semiconductor

NCP81258 Description

DATA SHEET www.onsemi.com Synchronous Buck MOSFET Driver NCP81258 The NCP81258 is a high *performance dual MOSFET gate driver in a small 2 mm .
Pin No. side gate driver.

NCP81258 Features

* Space
* efficient 2 mm x 2 mm DFN8 Thermally
* enhanced Package
* VCC Range of 4.5 V to 13.2 V
* Internal Bootstrap Diode
* 5 V 3
* stage PWM Input
* Zero Current Detect Function Provides Power Saving Operation during Light Load Conditions

NCP81258 Applications

* Power Solutions for Notebook and Desktop Systems 1 DFN8 MN SUFFIX CASE 506AA MARKING DIAGRAM 1 CRMG G CR = Specific Device Code M = Date Code G = Pb
* Free Device (Note: Microdot may be in either location) PIN CONNECTIONS BST 1 8 DRVH PWM 2 EN 3 FLAG 9 7 SW 6 GND VCC 4 (Top

📥 Download Datasheet

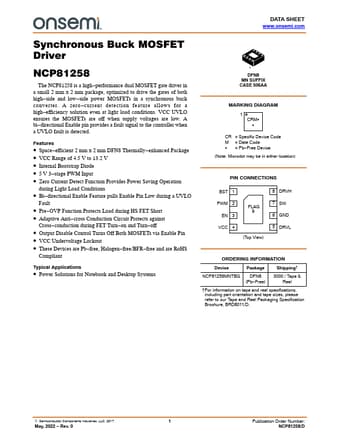

NCP81258 Datasheet Preview — Preview of NCP81258 PDF
