NCV3066 Constant Current Buck Boost Inverting Switching Regulator

NCV3066 Description

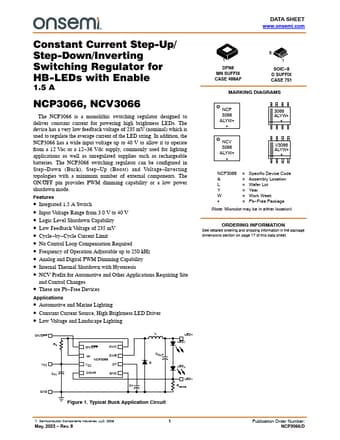

DATA SHEET www.onsemi.com Constant Current Step-Up/ Step-Down/Inverting Switching Regulator for HB-LEDs with Enable 1.5 A NCP3066, NCV3066 The NCP306.
Pin No.

NCV3066 Features

* Integrated 1.5 A Switch
* Input Voltage Range from 3.0 V to 40 V
* Logic Level Shutdown Capability
* Low Feedback Voltage of 235 mV
* Cycle
* by
* Cycle Current Limit
* No Control Loop Compensation Required
* Frequency of Operatio

NCV3066 Applications

* as well as unregulated supplies such as rechargeable batteries. The NCP3066 switching regulator can be configured in Step
* Down (Buck), Step
* Up (Boost) and Voltage
* Inverting topologies with a minimum number of external components. The ON/OFF pin provides PWM dimming capability
