SS38, SS32 Datasheet - ON Semiconductor

SS38, SS32, Schottky Rectifier

The SS32 *S310 series includes a high *efficiency, low power loss, general *propose Schottky rectifiers. The clipbonded leg structure provides high thermal performance and low electrical resistance. These rectifiers are suited for free wheeling, secondary rectification, and reve.

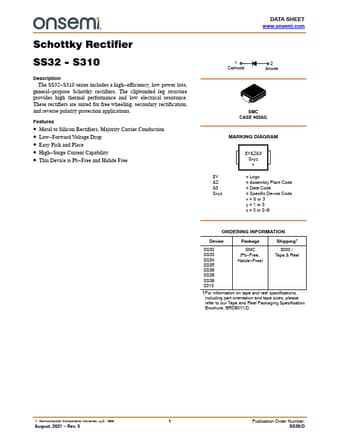

Datasheet Preview Page 1

SS32-ONSemiconductor.pdf

This datasheet PDF includes multiple part numbers: SS38, SS32. Please refer to the document for exact specifications by model.
SS38 Datasheet Preview Page 2 SS38 Datasheet Preview Page 3

Datasheet Details

Part number:

SS38, SS32

Manufacturer:

ON Semiconductor ↗

File Size:

143.36 KB

Description:

Schottky Rectifier

Note:

This datasheet PDF includes multiple part numbers: SS38, SS32.
Please refer to the document for exact specifications by model.

SS38 Features

* Metal to Silicon Rectifiers, Majority Carrier Conduction

* Low

* Forward Voltage Drop

* Easy Pick and Place

* High

* Surge Current Capability

* This Device is Pb

* Free and Halide Free DATA SHEET www.onsemi.com 1 Cathode 2 Anode SMC CAS
