PT12477 Datasheet - PTC

PT12477, Micro Stepping Motor Driver

The PT12477 is a monolith integrated motor driver designed for printers, scanners, and home or office automated equipment. The dual H-bridge drivers are consisting by all of N-channel MOSFETs, and designed to drive a 4-wires bipolar stepper motor. The output driving current of the PT12477 allows up .

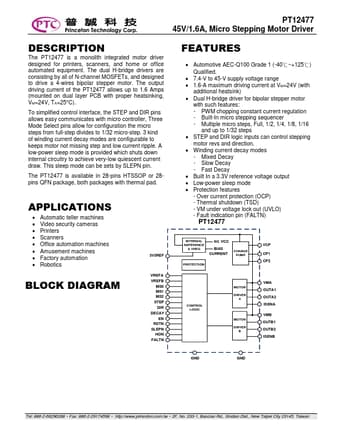

Datasheet Preview Page 1

PT12477-PTC.pdf

Preview of PT12477 PDF
PT12477 Datasheet Preview Page 2 PT12477 Datasheet Preview Page 3

Datasheet Details

Part number:

PT12477

Manufacturer:

PTC

File Size:

323.51 KB

Description:

Micro Stepping Motor Driver

PT12477 Features

* Automotive AEC-Q100 Grade 1 (-40℃~+125℃) Qualified.

* 7.4-V to 45-V supply voltage range

* 1.6-A maximum driving current at VM=24V (with additional heatsink)

* Dual H-bridge driver for bipolar stepper motor with such features: - PWM chopping constant current regulation - Built-In m
