PT12493 - 8-Channels SPI Controlled Half-Bridge Driver

PT12493 Description

PRELIMINARY PT12493 8-Channels SPI Controlled Half-Bridge Driver .
The PT12493 is an integrated multi-channel halfbridge drivers with 8 half-bridges.

PT12493 Features

* low on- state resistance (RDS(ON)) for improved thermal performance during high-current operation. This device can drive brushed-DC (BDC) motors or stepper motors in independent, sequential, or parallel mode. The half-bridges are fully controllable to achieve a forward, reverse, coasting and braking

PT12493 Applications

* HVAC flap DC motors
* Side mirror adjustment and mirror fold
* LED applications

📥 Download Datasheet

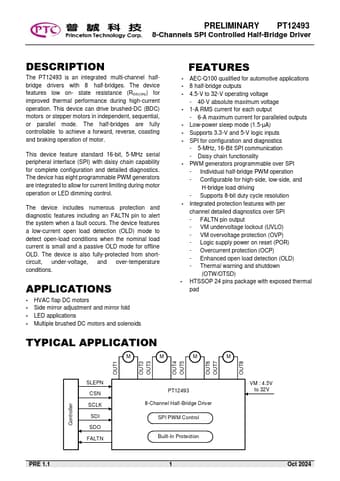

Preview of PT12493 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
PT12493
Manufacturer
PTC
File Size
381.09 KB
Datasheet
PT12493-PTC.pdf
Description
8-Channels SPI Controlled Half-Bridge Driver
