PT5607 Datasheet - PTC

PT5607, 600V Half-bridge driver

The PT5607 is a high speed high voltage (600V) driver to control power devices like MOS-transistors or IGBTs in half bridge systems with dependent high and low side referenced output channels. The logic input is compatible with standard CMOS or LSTTL output, down to 3.3V logic. The device includes a.

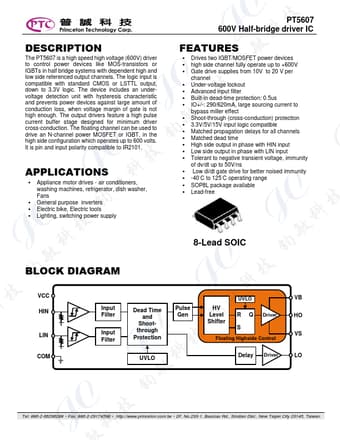

Datasheet Preview Page 1

PT5607-PTC.pdf

Preview of PT5607 PDF
PT5607 Datasheet Preview Page 2 PT5607 Datasheet Preview Page 3

Datasheet Details

Part number:

PT5607

Manufacturer:

PTC

File Size:

700.73 KB

Description:

600V Half-bridge driver

PT5607 Features

* Drives two IGBT/MOSFET power devices

* high side channel fully operate up to +600V

* Gate drive supplies from 10V to 20 V per channel

* Under-voltage lockout

* Advanced input filter

* Built-in dead-time protection: 0.5us

* IO+/-: 290/620mA, large sourcing current to byp
