10TAE220ML - Conductive Polymer Tantalum Solid Capacitors

Panasonic

Download the 10TAE220ML datasheet PDF. This datasheet also covers the 10TAB47M variant, as both devices belong to the same conductive polymer tantalum solid capacitors family and are provided as variant models within a single manufacturer datasheet.

📥 Download Datasheet

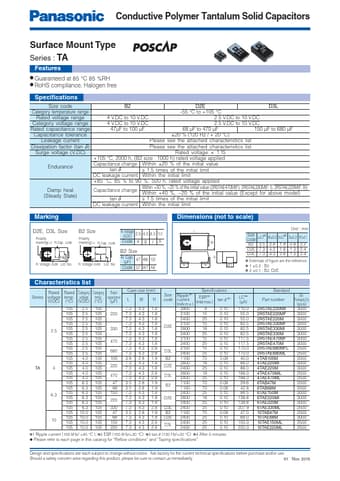

10TAE220ML conductive polymer tantalum solid capacitors by Panasonic - Datasheet Preview — Note: The manufacturer provides a single datasheet file (10TAB47M-Panasonic.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number	10TAE220ML
Manufacturer	Panasonic
File Size	43.19 KB
Description	Conductive Polymer Tantalum Solid Capacitors
Datasheet	10TAE220ML Datasheet

Overview

Conductive Polymer Tantalum Solid Capacitors Surface Mount Type Series :.

Key Features

Guaranteed at 85 °C 85 %RH.
RoHS compliance, Halogen free Specifications Size code B2 D2E D3L Category temperature range.
55 °C to +105 °C Rated voltage range 4 V. DC to 10 V. DC 2.5 V. DC to 10 V. DC Category voltage range 4 V. DC to 10 V. DC 2.5 V. DC to 10 V. DC Rated capacitance range 47μF to 100 μF 68 μF to 470 μF 150 μF to 680 μF Capacitance tolerance ±20 % (120 Hz / + 20 °C) Leakage current Please see the attached characteristics list Dissipation factor (ta.
