AN44169A - single phase Brushless Motor Driver

Description

AN44169A is a high efficiency single phase motor driver IC with built-in Soft Switching function for low noise operation.

The soft switching period is automatically adjusted based on the motor current.

Features

  • Supply voltage range: 5.0 V ~ 28 V.
  • Auto phase shift correction with built-in Soft Switching function.
  • Wide range operation (12V/24V).
  • Speed Control by direct PWM input.
  • Motor lock protection and built-in Auto-recovery Adjustable by a external capacitance.
  • Output pin for FG pulse (open drain).
  • Output pin for lock detection (open drain ).
  • Various protection functions: Under Voltage Lock Out (UVLO), Thermal protection GND short protection, and Over Current.

📥 Download Datasheet

Datasheet preview – AN44169A

Datasheet Details

Part number AN44169A
Manufacturer Panasonic
File Size 1.62 MB
Description single phase Brushless Motor Driver
Datasheet download datasheet AN44169A Datasheet
Additional preview pages of the AN44169A datasheet.

📁 Similar Datasheet

  • AN44 - CMOS Gate Array (AMI)
  • AN440 - RAM Loader Program (Philips)
  • AN44060A - Mortordrive - Stepping (Panasonic Industrial Company)
  • AN44063A - Driver IC (Panasonic Semiconductor)
  • AN44065A - Driver IC (Panasonic Semiconductor)
  • AN44066A - Driver IC (Panasonic Semiconductor)
  • AN44067A - Driver IC (Panasonic Semiconductor)
  • AN44069A - Driver IC (Panasonic Semiconductor)
  • AN4003 - PC POWER SUPPLY DESIGN WITH KA3511 (Fairchild Semiconductor)
  • AN4009 - ALARM IC SAMPLE APPLICATIONS (Freescale Semiconductor)
Other Datasheets by Panasonic
  • AN44168A - single phase Brushless Motor Driver
  • AN44140A - 1-Hall-Sensor Driver
  • AN44142A - 3-phase Brushless Motor Driver
  • AN44143A - 3-phase Brushless Motor Driver
  • AN44150A - 3-Phase Brushless Motor Driver
  • AN44180A - 37V / 1.5A Stepping Motor Driver
  • AN44183A - 37V / 4.0A Microstepping Motor Driver
  • AN44070A - DC Motor Driver

Full PDF Text Transcription

Click to expand full text

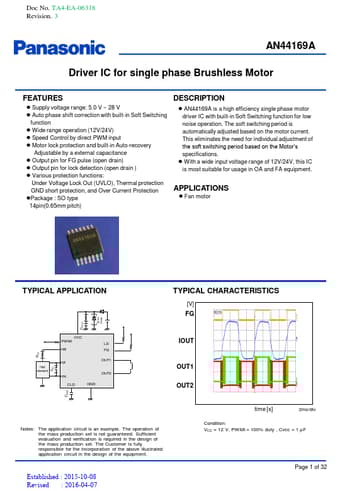

Doc No. TA4-EA-06318 Revision. 3 Product Standards AN44169A Driver IC for single phase Brushless Motor FEATURES  Supply voltage range: 5.0 V ~ 28 V  Auto phase shift correction with built-in Soft Switching function  Wide range operation (12V/24V)  Speed Control by direct PWM input  Motor lock protection and built-in Auto-recovery Adjustable by a external capacitance  Output pin for FG pulse (open drain)  Output pin for lock detection (open drain )  Various protection functions: Under Voltage Lock Out (UVLO), Thermal protection GND short protection, and Over Current Protection Package : SO type 14pin(0.65mm pitch) DESCRIPTION  AN44169A is a high efficiency single phase motor driver IC with built-in Soft Switching function for low noise operation.
