CM300DY-24H, Dual IGBT Module

Powerex IGBTMOD™ Modules are designed for use in switching applications. Each module consists of two IGBT Transistors in a half-bridge configuration with each transistor having a reverseconnected super-fast recovery free-wheel diode. All components and interconnects are isolated from the heat sinki.

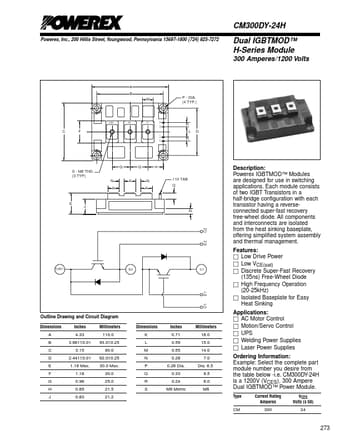

Datasheet Preview Page 1

CM300DY-24H_PowerexPowerSemiconductors.pdf

Preview of CM300DY-24H PDF
CM300DY-24H Datasheet Preview Page 2 CM300DY-24H Datasheet Preview Page 3

Datasheet Details

Part number:

CM300DY-24H

Manufacturer:

Powerex Power Semiconductors

File Size:

55.75 KB

Description:

Dual IGBT Module

CM300DY-24H Features

* Low Drive Power

* Low VCE(sat)

* Discrete Super-Fast Recovery (135ns) Free-Wheel Diode

* High Frequency Operation (20-25kHz)

* Isolated Baseplate for Easy Heat Sinking Applications:

* AC Motor Control

* Motion/Servo Control

* UPS
