BM1386GLV Pressure Sensor

BM1386GLV Description

Datasheet Pressure Sensor series Pressure Sensor IC BM1386GLV General .
BM1386GLV is piezo-resistive pressure sensor.

BM1386GLV Features

* Piezo-resistive pressure sensor
* Pressure range is from 300hPa to 1300hPa
* Built-in temperature compensation function.
* I2C bus interface (f/s mode support)
* Built-in FIFO

BM1386GLV Applications

* Smartphone, Healthcare, mobile device (e. g. game). Typical Application Circuit BM1386GLV Pressure Sensor Temperature Sensor Mux ADC Memory signal processing Regulator VREG (internal) VDD VSS TEST3 SDA I2C SCL TEST2 DRI Clock TES

📥 Download Datasheet

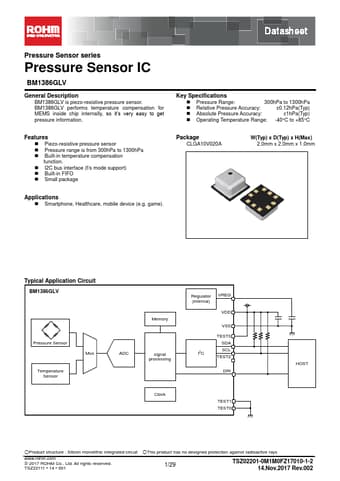

Preview of BM1386GLV PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
BM1386GLV
Manufacturer
ROHM ↗
File Size
1.21 MB
Datasheet
BM1386GLV-ROHM.pdf
Description
Pressure Sensor
