HD74HC237, 3-to-8-line Decoder/Demultiplexer

The HD74HC237 decodes a three-bit Address to one-of-eight active-high outputs. The device has a transparent latch for storage of the Address. Two Chip Selects, one active-low and one active-high, are provided to facilitate the demultiplexing, cascading, and chip-selecting functions. The demultiplexi.

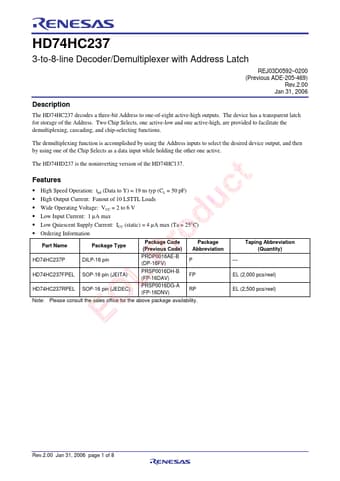

 Datasheet Preview Page 1

HD74HC237-Renesas.pdf

Preview of HD74HC237 PDF

Datasheet Details

Part number:

HD74HC237

Manufacturer:

Renesas โ†—

File Size:

242.42 KB

Description:

3-to-8-line Decoder/Demultiplexer

HD74HC237 Features

* High Speed Operation: tpd (Data to Y) = 19 ns typ (CL = 50 pF)

* High Output Current: Fanout of 10 LSTTL Loads

* Wide Operating Voltage: VCC = 2 to 6 V

* Low Input Current: 1 ยตA max

* Low Quiescent Supply Current: ICC (static) = 4 ยตA max (Ta = 25ยฐC)
