HD74HC354 Datasheet

8-to-1-line Data Selector/Multiplexer/Register

No Preview Available !

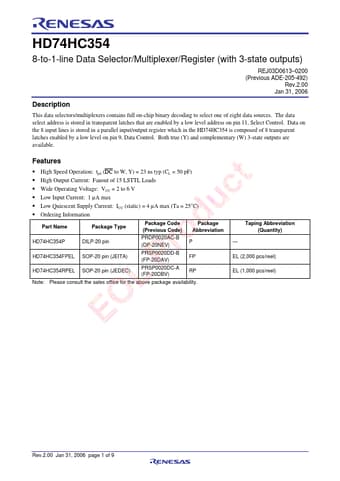

HD74HC354
8-to-1-line Data Selector/Multiplexer/Register (with 3-state outputs)
REJ03D0613–0200
(Previous ADE-205-492)
Rev.2.00
Jan 31, 2006
Description
This data selectors/multiplexers contains full on-chip binary decoding to select one of eight data sources. The data
select address is stored in transparent latches that are enabled by a low level address on pin 11, Select Control. Data on
the 8 input lines is stored in a parallel input/output register which in the HD74HC354 is composed of 8 transparent
latches enabled by a low level on pin 9, Data Control. Both true (Y) and complementary (W) 3-state outputs are
available.
Features
High Speed Operation: tpd (DC to W, Y) = 23 ns typ (CL = 50 pF)
High Output Current: Fanout of 15 LSTTL Loads
Wide Operating Voltage: VCC = 2 to 6 V
Low Input Current: 1 µA max
Low Quiescent Supply Current: ICC (static) = 4 µA max (Ta = 25°C)
Ordering Information
Part Name
Package Type
Package Code
(Previous Code)
Package
Abbreviation
HD74HC354P
DILP-20 pin
PRDP0020AC-B
(DP-20NEV)
P
HD74HC354FPEL SOP-20 pin (JEITA)
PRSP0020DD-B
(FP-20DAV)
FP
HD74HC354RPEL SOP-20 pin (JEDEC)
PRSP0020DC-A RP
(FP-20DBV)
Note: Please consult the sales office for the above package availability.
Taping Abbreviation
(Quantity)
EL (2,000 pcs/reel)
EL (1,000 pcs/reel)
Rev.2.00 Jan 31, 2006 page 1 of 9


Renesas Electronics Components Datasheet

HD74HC354 Datasheet

8-to-1-line Data Selector/Multiplexer/Register

No Preview Available !

HD74HC354
Function Table
Inputs
Select
Data Control
Output Enable
S1 S2 S0 DC G1 G2
XXX X H X
XXX X X H
XXX X X X
LLL L L L
LLL H L L
L LH
L
LL
LLH H
LL
LHL L L L
LHL H L L
L HH
L
LL
L HH
H
LL
HLL L L L
HLL H L L
HLH
L
LL
HLH
H
LL
HHL L L L
HHL H L L
HHH
L
LL
HHH
H
LL
Notes: 1. H; High level, L; Low level, X; Irrelevant, Z; High impedance
G3
X
X
L
H
H
H
H
H
H
H
H
H
H
H
H
H
H
H
H
Pin Arrangement
Outputs
WY
ZZ
ZZ
ZZ
D0 D0
D0n D0n
D1 D1
D1n D1n
D2 D2
D2n D2n
D3 D3
D3n D3n
D4 D4
D4n D4n
D5 D5
D5n D5n
D6 D6
D6n D6n
D7 D7
D7n D7n
D7 1
D6 2
D5 3
Data
inputs
D4 4
D3 5
D2 6
D1 7
D0 8
Data control 9
GND 10
(Top view)
20 VCC
19 Y
18 W
Outputs
17 G3
16 G2
15 G1
Output
enables
14 S0
13 S1 Select
12 S2
11
Select
control
Rev.2.00 Jan 31, 2006 page 2 of 9
