HBT138F-600 - INSULATED TYPE TRIAC

Description

This device is fully isolated package suitable for AC switching application, phase control application such as fan speed and temperature modulation control, lighting control and static switching relay.

Absolute Maximum Ratings（Ta=25℃） 12 3 Tstg Storage Temperature…

Features

  • s.
  • Repetitive Peak Off-State Voltage: 600V.
  • R. M. S On-State Current(IT(RMS)=12A).
  • High Commutation dv/dt.
  • Isolation Voltage（VISO=1500V AC）.
  • General.

📥 Download Datasheet

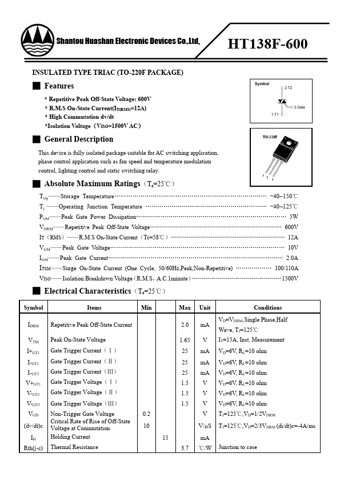

Datasheet preview – HBT138F-600

Datasheet Details

Part number HBT138F-600
Manufacturer SHANTOU HUASHAN
File Size 193.55 KB
Description INSULATED TYPE TRIAC
Datasheet download datasheet HBT138F-600 Datasheet
Additional preview pages of the HBT138F-600 datasheet.

📁 Similar Datasheet

Other Datasheets by SHANTOU HUASHAN

Full PDF Text Transcription

Click to expand full text
Shantou Huashan Electronic Devices Co.,Ltd. HT138F-600 INSULATED TYPE TRIAC (TO-220F PACKAGE) █ Features * Repetitive Peak Off-State Voltage: 600V * R.M.S On-State Current(IT(RMS)=12A) * High Commutation dv/dt *Isolation Voltage（VISO=1500V AC） █ General Description TO-220F This device is fully isolated package suitable for AC switching application, phase control application such as fan speed and temperature modulation control, lighting control and static switching relay. █ Absolute Maximum Ratings（Ta=25℃） 12 3 Tstg——Storage Temperature………………………………………………………………… -40~150℃ Tj ——Operating Junction Temperature …………………………………………………… -40~125℃ PGM——Peak Gate Power Dissipation………………………………………………………………… 5W VDRM——Repetitive Peak Off-State Voltage………………………………………………………… 600V IT（RMS）——R.M.
