ZTB375T - Ceramic Resonators

This page provides the datasheet information for the ZTB375T, a member of the ZTB190E Ceramic Resonators family.

Features

  • Highly reliable design with excellent environmental resistance.
  • Standardized for use in low profile devices.
  • Low cost.

📥 Download Datasheet

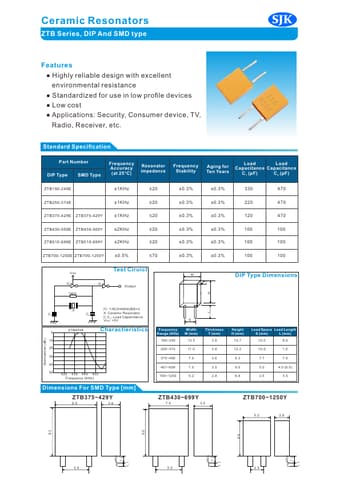

Datasheet preview – ZTB375T

Datasheet Details

Part number ZTB375T
Manufacturer SJK
File Size 87.38 KB
Description Ceramic Resonators
Datasheet download datasheet ZTB375T Datasheet
Additional preview pages of the ZTB375T datasheet.

📁 Similar Datasheet

  • ZTB375 - Surface Mountable Resonators (Token)
  • ZTB375P - Ceramic Resonators (Token)
  • ZTB374D - Ceramic Resonators (Token)
  • ZTB - ZTB Series KHz-Band Ceramic Resonator (Vanlong Technology)
  • ZTB-A - Low Frequecy (KHz) Ceramic Resonators (Fortiming)
  • ZTB-B - Low Frequecy (KHz) Ceramic Resonators (Fortiming)
  • ZTB-C - Low Frequecy (KHz) Ceramic Resonators (Fortiming)
  • ZTB-D - Low Frequecy (KHz) Ceramic Resonators (Fortiming)
  • ZTB-E - Low Frequecy (KHz) Ceramic Resonators (Fortiming)
  • ZTB-F - Low Frequecy (KHz) Ceramic Resonators (Fortiming)
Other Datasheets by SJK

Full PDF Text Transcription

Click to expand full text
Ceramic Resonators ZTB Series, DIP And SMD type Features ● Highly reliable design with excellent environmental resistance ● Standardized for use in low profile devices ● Low cost ● Applications: Security, Consumer device, TV, Radio, Receiver, etc. Standard Specification Part Number DIP Type SMD Type Frequency Accuracy (at 25°C) Resonator Impedance Frequency Stability Load Load Aging for Capacitance Capacitance Ten Years C1 (pF) C2 (pF) ZTB190-249E ±1KHz ≤20 ±0.3% ±0.3% 330 470 ZTB250-374E ±1KHz ≤20 ±0.3% ±0.3% 220 470 ZTB375-429E ZTB375-429Y ±1KHz ≤20 ±0.3% ±0.3% 120 470 ZTB430-509E ZTB430-509Y ZTB510-699E ZTB510-699Y ±2KHz ±2KHz ≤20 ≤20 ±0.3% ±0.3% ±0.3% ±0.3% 100 100 100 100 ZTB700-1250E ZTB700-1250Y ±0.5% ≤70 ±0.3% ±0.
