Part number:
DG15X12T2
Manufacturer:
STARPOWER
File Size:
532.87 KB
Description:
Igbt.
DG15X12T2 Datasheet (532.87 KB)
Datasheet Details

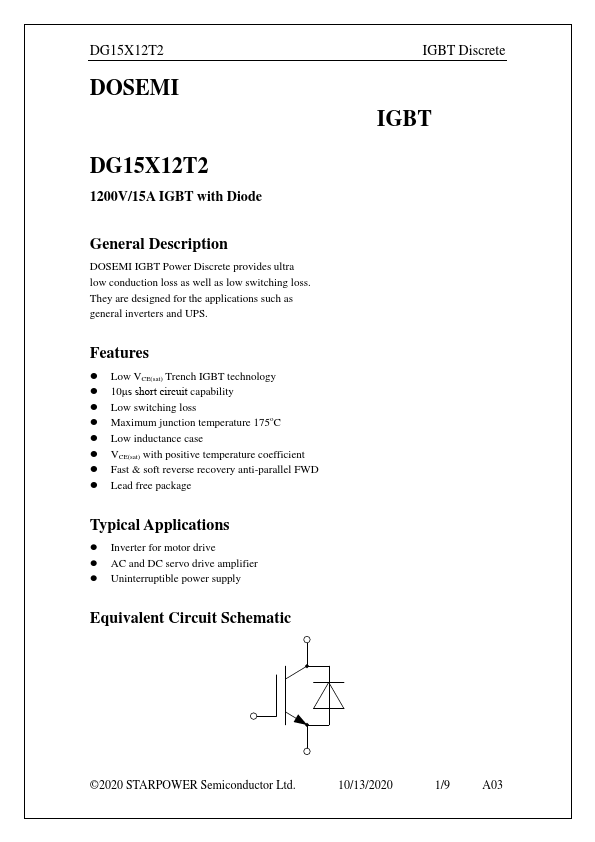

DG15X12T2 Features
* Low VCE(sat) Trench IGBT technology
* 10μs short circuit capability
* Low switching loss
* Maximum junction temperature 175oC
* Low inductance case
* VCE(sat) with positive temperature coefficient
* Fast & soft reverse recovery anti-parallel FWD
* Lead free package
DG15X12T2 Datasheet (532.87 KB)
Datasheet Details
DG15X12T2
STARPOWER
532.87 KB
Igbt.
