GD10PJA120L2S Datasheet - STARPOWER

GD10PJA120L2S IGBT

GD10PJA120L2S Features

* Low VCE(sat) Trench IGBT technology

* 8μs short circuit capability

* VCE(sat) with positive temperature coefficient

* Maximum junction temperature 175oC

* Low inductance case

* Fast & soft reverse recovery anti-parallel FWD

* Isolated heatsink using DBC technology Typic

GD10PJA120L2S Datasheet (714.77 KB)

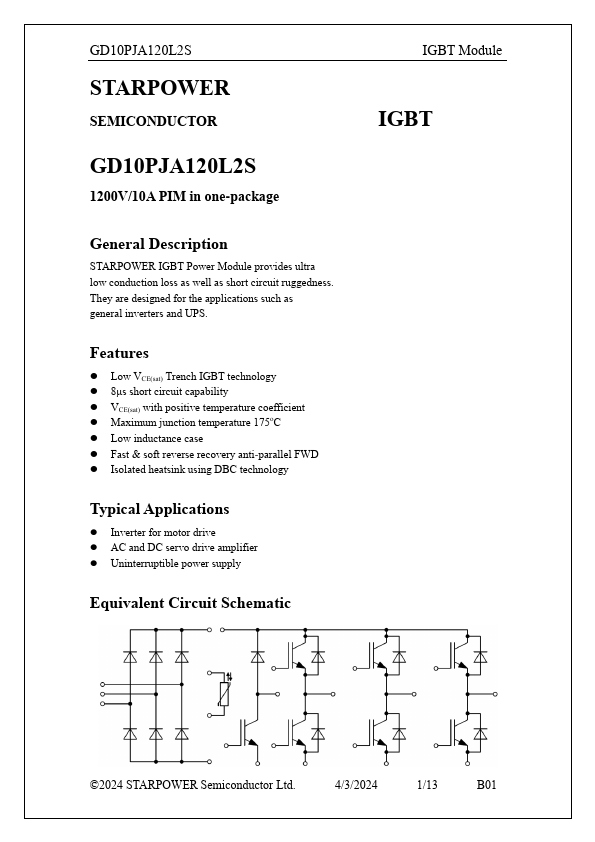

Preview of GD10PJA120L2S PDF

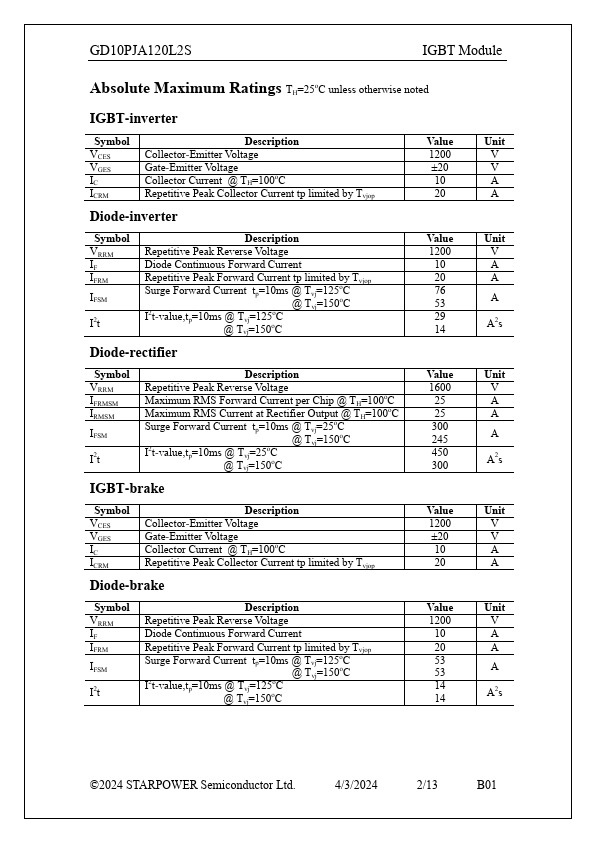

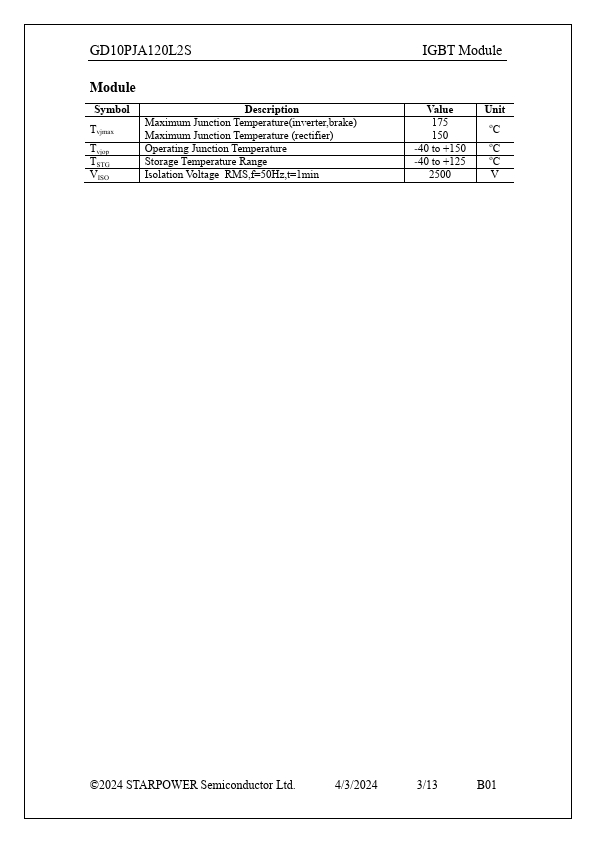

GD10PJA120L2S Datasheet Preview Page 2 GD10PJA120L2S Datasheet Preview Page 3

Datasheet Details

Part number:

GD10PJA120L2S

Manufacturer:

STARPOWER

File Size:

714.77 KB

Description:

Igbt.
