GD15PJX120L2S_B22 Datasheet - STARPOWER

GD15PJX120L2S_B22 IGBT

GD15PJX120L2S_B22 Features

* Low VCE(sat) Trench IGBT technology

* 10μs short circuit capability

* VCE(sat) with positive temperature coefficient

* Maximum junction temperature 175oC

* Low inductance case

* Fast & soft reverse recovery anti-parallel FWD

* Isolated heatsink using DBC technology

GD15PJX120L2S_B22 Datasheet (735.14 KB)

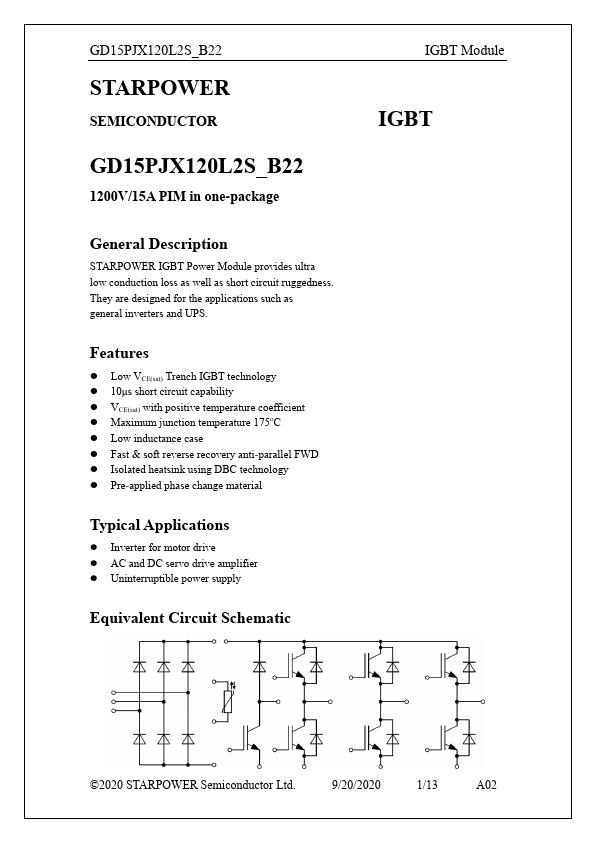

Preview of GD15PJX120L2S_B22 PDF

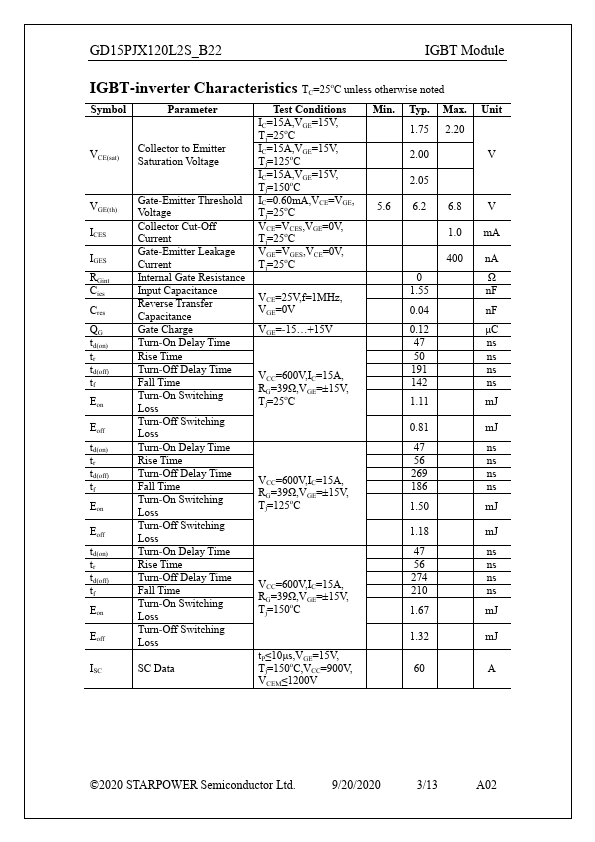

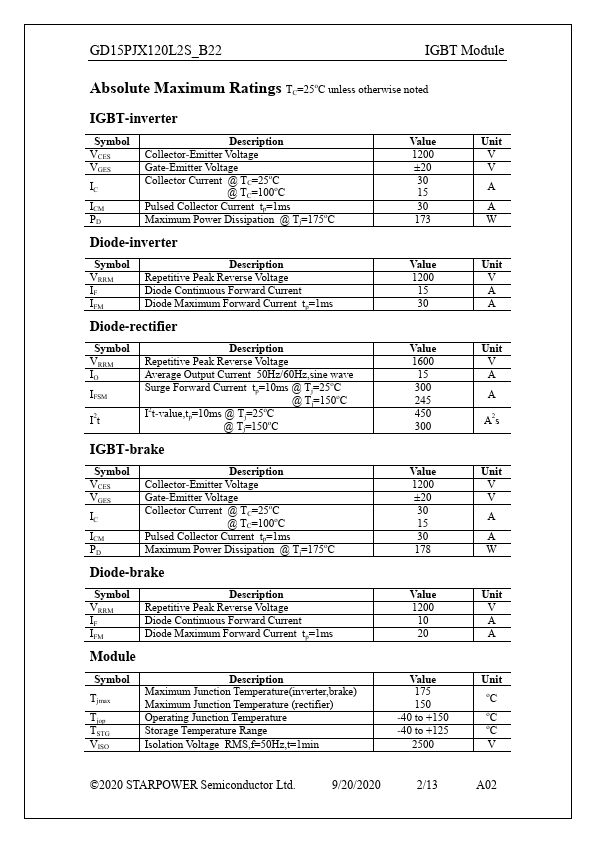

GD15PJX120L2S_B22 Datasheet Preview Page 2 GD15PJX120L2S_B22 Datasheet Preview Page 3

Datasheet Details

Part number:

GD15PJX120L2S_B22

Manufacturer:

STARPOWER

File Size:

735.14 KB

Description:

Igbt.
