Part number:
GD25FSA120L2SF
Manufacturer:
STARPOWER
File Size:
469.47 KB
Description:
Igbt.
GD25FSA120L2SF Datasheet (469.47 KB)
Datasheet Details

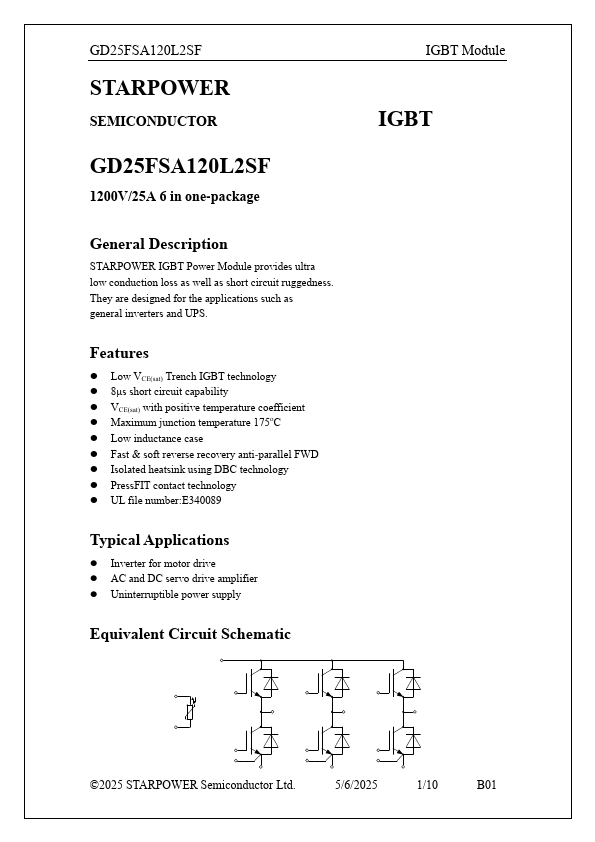

GD25FSA120L2SF Features
* Low VCE(sat) Trench IGBT technology
* 8μs short circuit capability
* VCE(sat) with positive temperature coefficient
* Maximum junction temperature 175oC
* Low inductance case
* Fast & soft reverse recovery anti-parallel FWD
* Isolated heatsink using DBC technology
GD25FSA120L2SF Datasheet (469.47 KB)
Datasheet Details
GD25FSA120L2SF
STARPOWER
469.47 KB
Igbt.
