GD480HTA120P7HT_T2 Datasheet - STARPOWER

GD480HTA120P7HT_T2 IGBT

GD480HTA120P7HT_T2 Features

* Low VCE(sat) Trench IGBT technology

* Low switching losses

* 6μs short circuit capability

* VCE(sat) with positive temperature coefficient

* Maximum junction temperature 175oC

* Low inductance case

* Fast & soft reverse recovery anti-parallel FWD

* Isolated copper p

GD480HTA120P7HT_T2 Datasheet (645.29 KB)

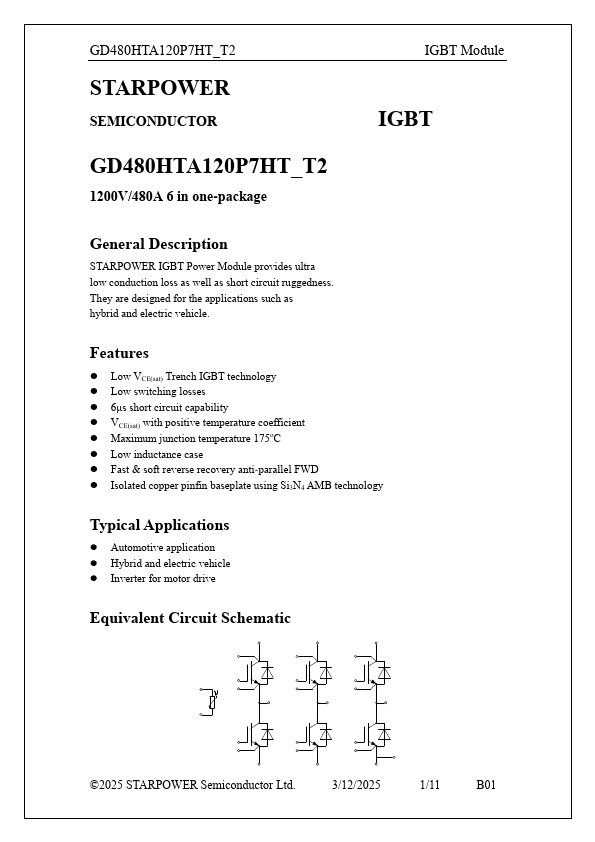

Preview of GD480HTA120P7HT_T2 PDF

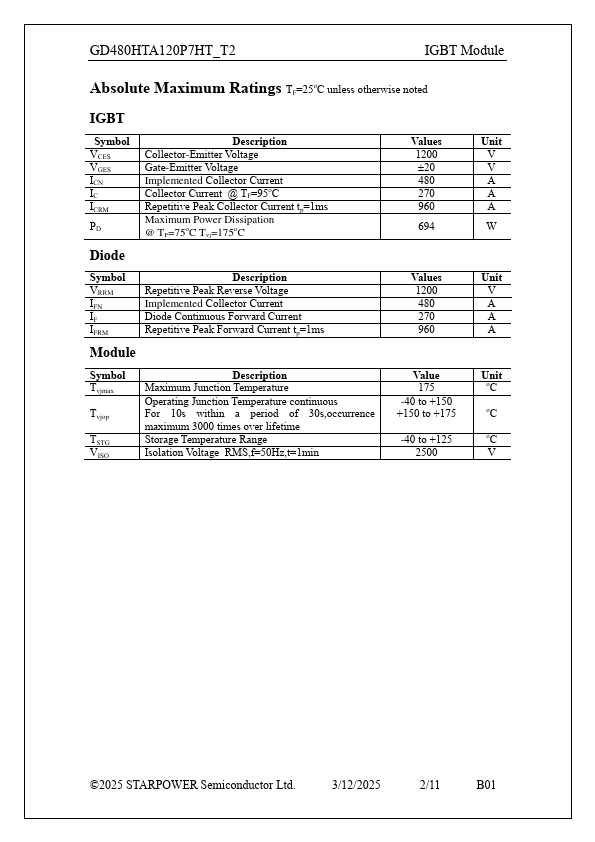

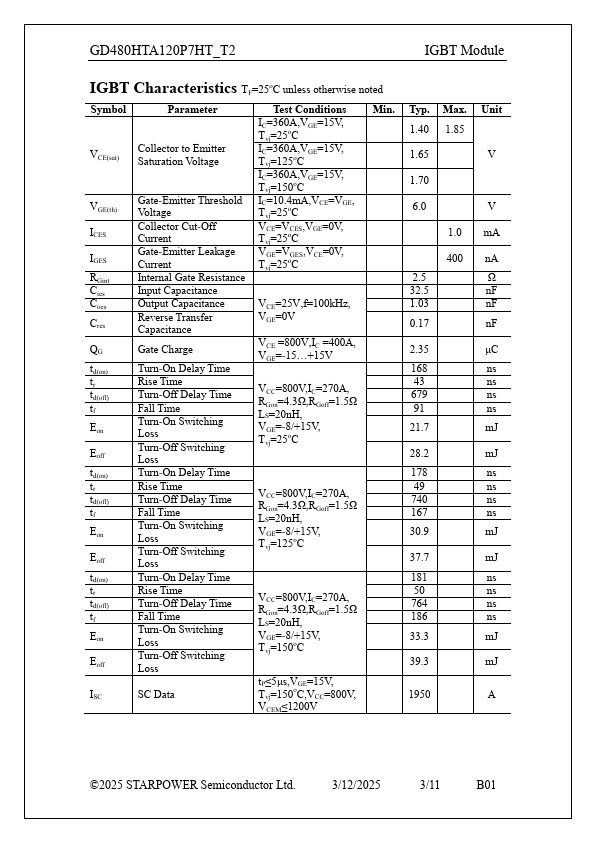

GD480HTA120P7HT_T2 Datasheet Preview Page 2 GD480HTA120P7HT_T2 Datasheet Preview Page 3

Datasheet Details

Part number:

GD480HTA120P7HT_T2

Manufacturer:

STARPOWER

File Size:

645.29 KB

Description:

Igbt.
