Part number:
GD720HTA120P6HT
Manufacturer:
STARPOWER
File Size:
745.49 KB
Description:
Igbt.

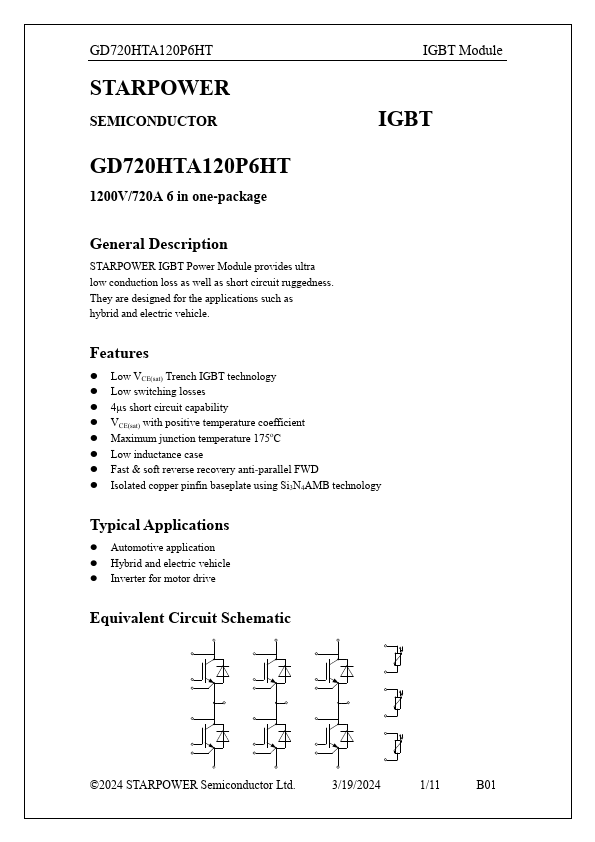

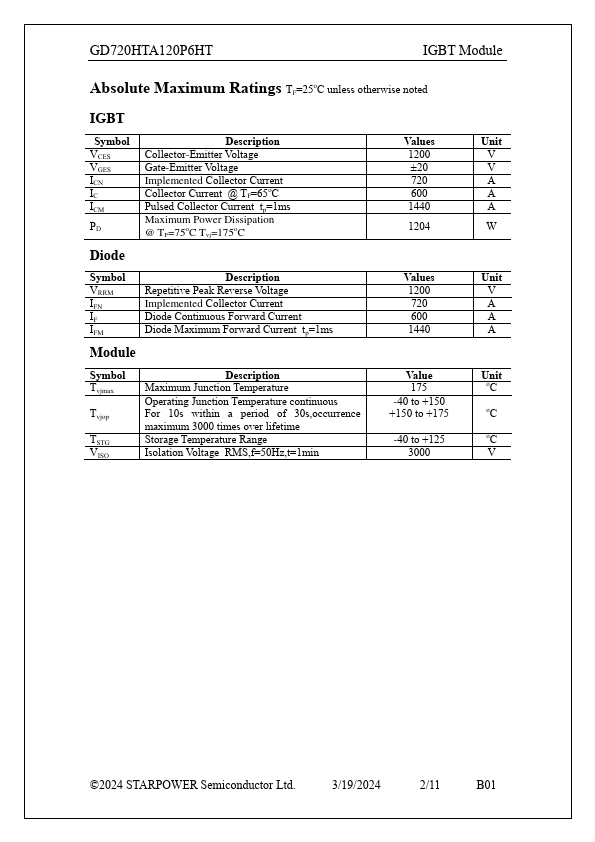

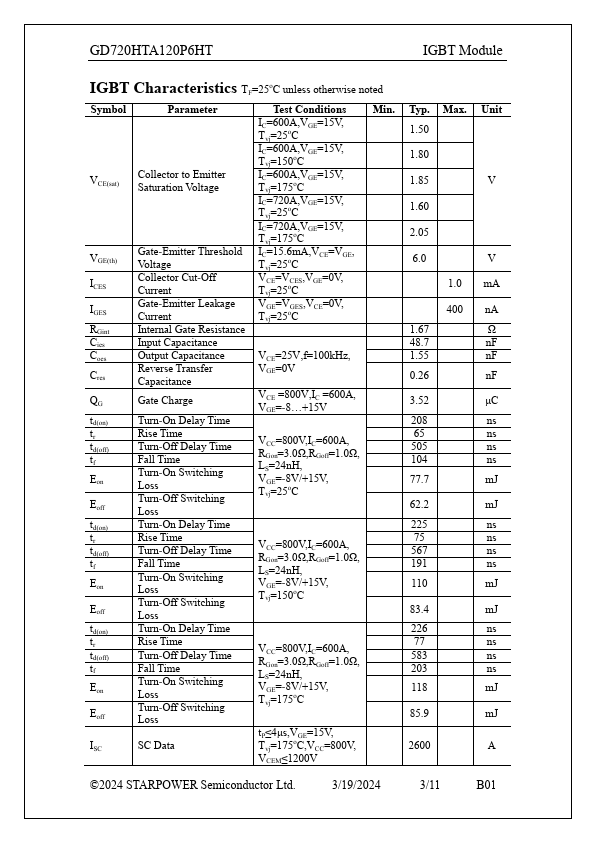

GD720HTA120P6HT Datasheet (745.49 KB)
Datasheet Details
GD720HTA120P6HT Features
* Low VCE(sat) Trench IGBT technology
* Low switching losses
* 4μs short circuit capability
* VCE(sat) with positive temperature coefficient
* Maximum junction temperature 175oC
* Low inductance case
* Fast & soft reverse recovery anti-parallel FWD
* Isolated copper p
GD720HTA120P6HT Datasheet (745.49 KB)
Datasheet Details
GD720HTA120P6HT
STARPOWER
745.49 KB
Igbt.
