GD950HTA75P6HFT Datasheet - STARPOWER

GD950HTA75P6HFT IGBT

GD950HTA75P6HFT Features

* Low VCE(sat) Trench IGBT technology

* Low switching losses

* 6μs short circuit capability

* VCE(sat) with positive temperature coefficient

* Maximum junction temperature 175oC

* Low inductance case

* Fast & soft reverse recovery anti-parallel FWD

* Isolated copper p

GD950HTA75P6HFT Datasheet (758.74 KB)

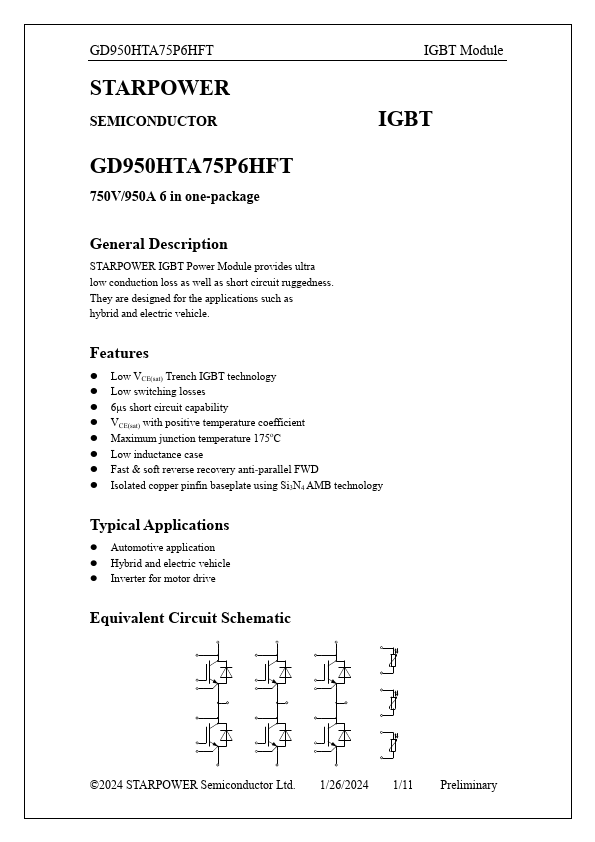

Preview of GD950HTA75P6HFT PDF

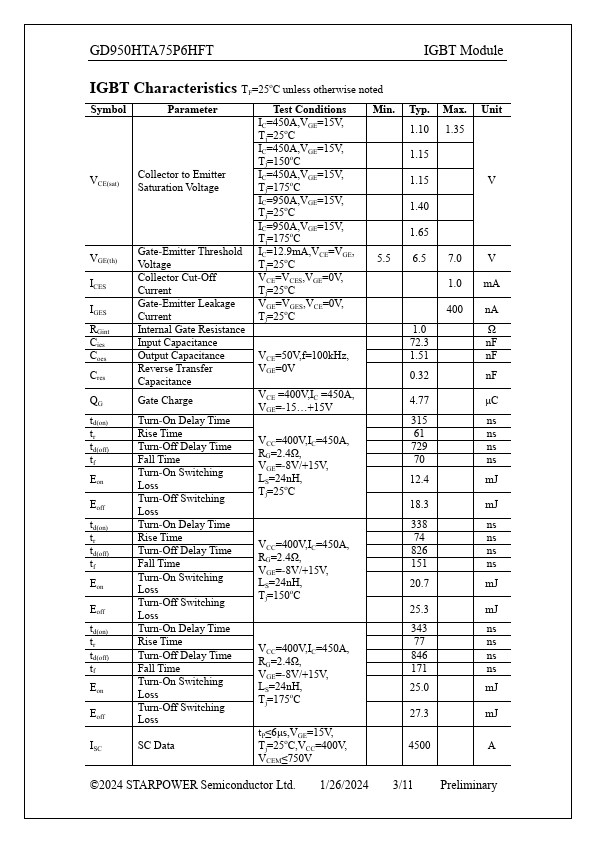

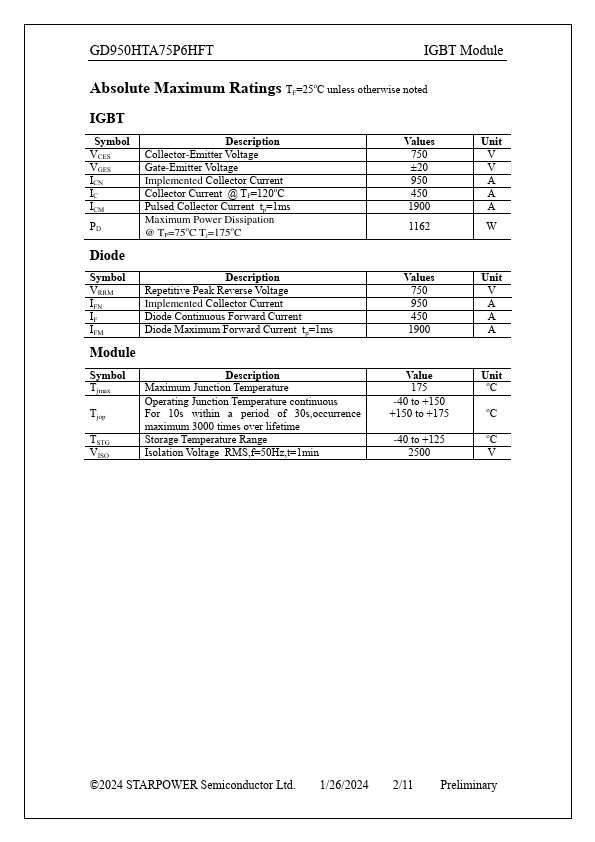

GD950HTA75P6HFT Datasheet Preview Page 2 GD950HTA75P6HFT Datasheet Preview Page 3

Datasheet Details

Part number:

GD950HTA75P6HFT

Manufacturer:

STARPOWER

File Size:

758.74 KB

Description:

Igbt.
