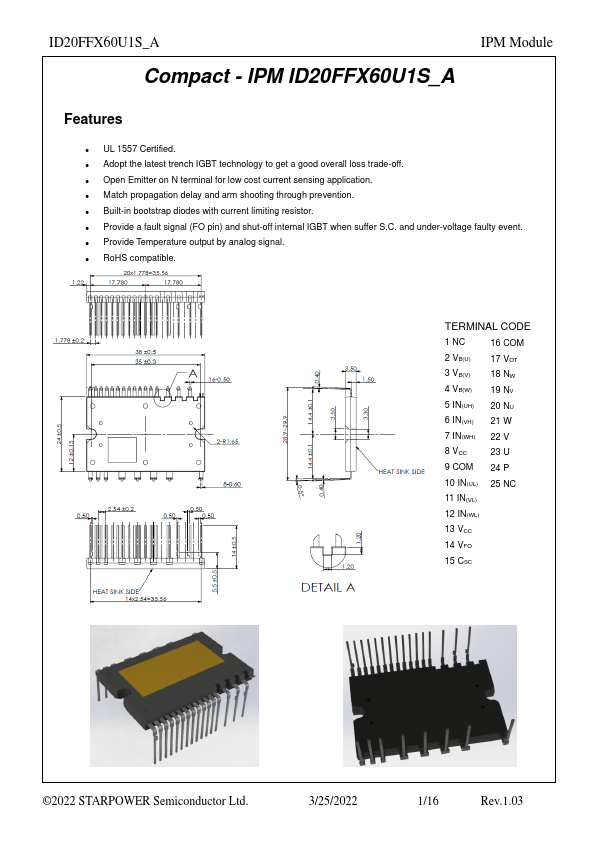

ID20FFX60U1S_A Datasheet - STARPOWER

ID20FFX60U1S_A IPM

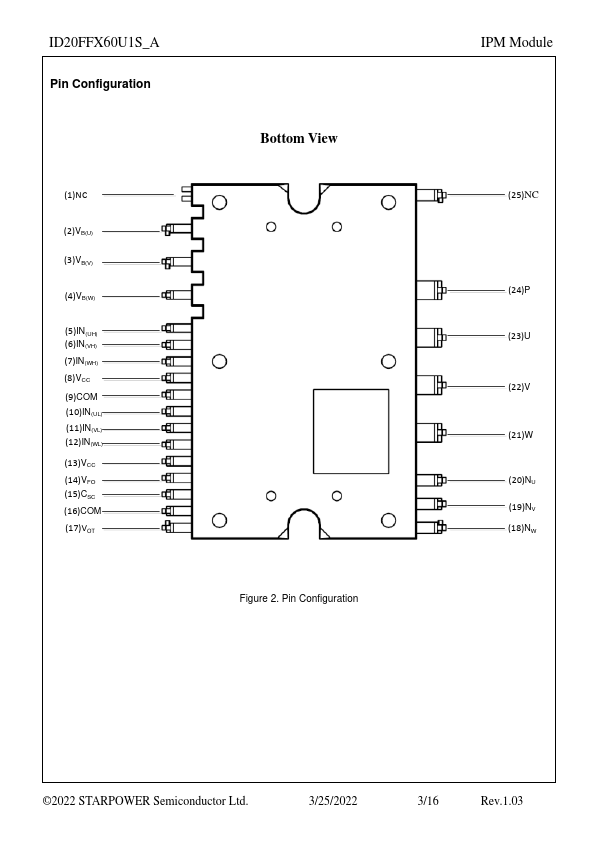

No. Symbol Pin Description 1 NC No Connection 2 VB(U) High - side Bias Voltage for U Phase IGBT Driving 3 VB(V) High - side Bias Voltage for V Phase IGBT Driving 4 VB(W) High - side Bias Voltage for W Phase IGBT Driving 5 IN(UH) Signal Input Terminal for High-side U Phase 6 IN(V.

ID20FFX60U1S_A Features

* UL 1557 Certified.

* Adopt the latest trench IGBT technology to get a good overall loss trade-off.

* Open Emitter on N terminal for low cost current sensing application.

* Match propagation delay and arm shooting through prevention.

* Built-in bootstrap diodes with current limi

ID20FFX60U1S_A Datasheet (644.93 KB)
