ID20FFX60U3S IPM

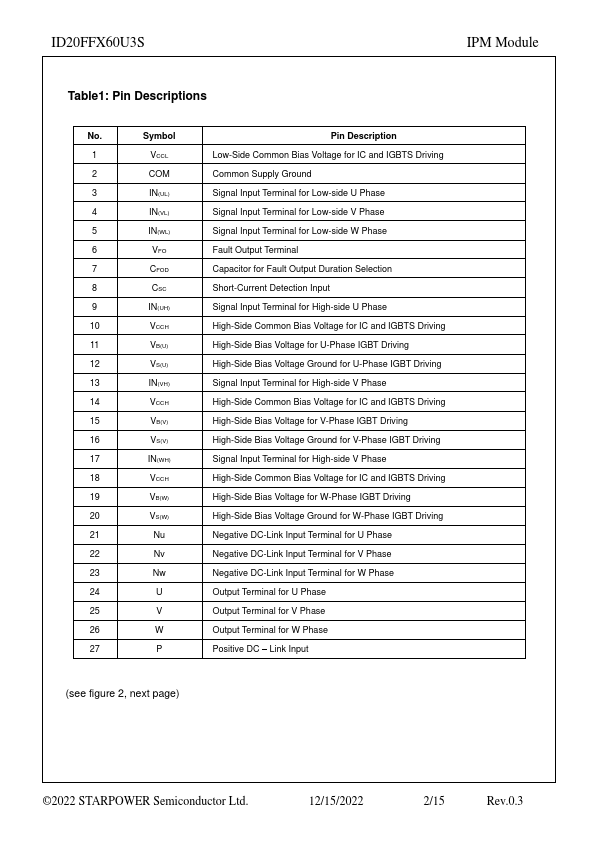

No. Symbol Pin Description 1 VCCL Low-Side Common Bias Voltage for IC and IGBTS Driving 2 COM Common Supply Ground 3 IN(UL) Signal Input Terminal for Low-side U Phase 4 IN(VL) Signal Input Terminal for Low-side V Phase 5 IN(WL) Signal Input Terminal for Low-side W Phase 6 VFO F.

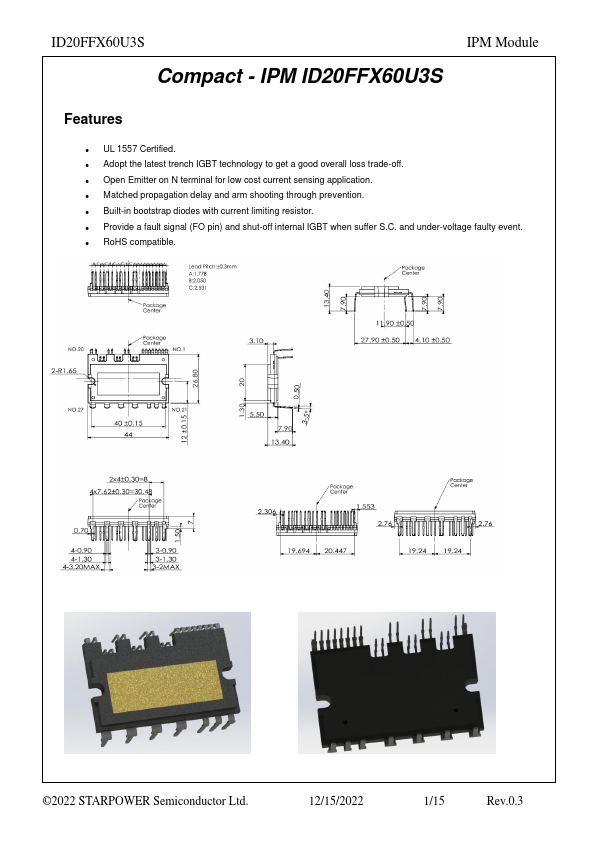

ID20FFX60U3S Features

* UL 1557 Certified.

* Adopt the latest trench IGBT technology to get a good overall loss trade-off.

* Open Emitter on N terminal for low cost current sensing application.

* Matched propagation delay and arm shooting through prevention.

* Built-in bootstrap diodes with current li

ID20FFX60U3S Datasheet (696.57 KB)
