Part number:
MD43HFS120B3S
Manufacturer:
STARPOWER
File Size:
401.88 KB
Description:
Sic mosfet.
MD43HFS120B3S Datasheet (401.88 KB)
Datasheet Details

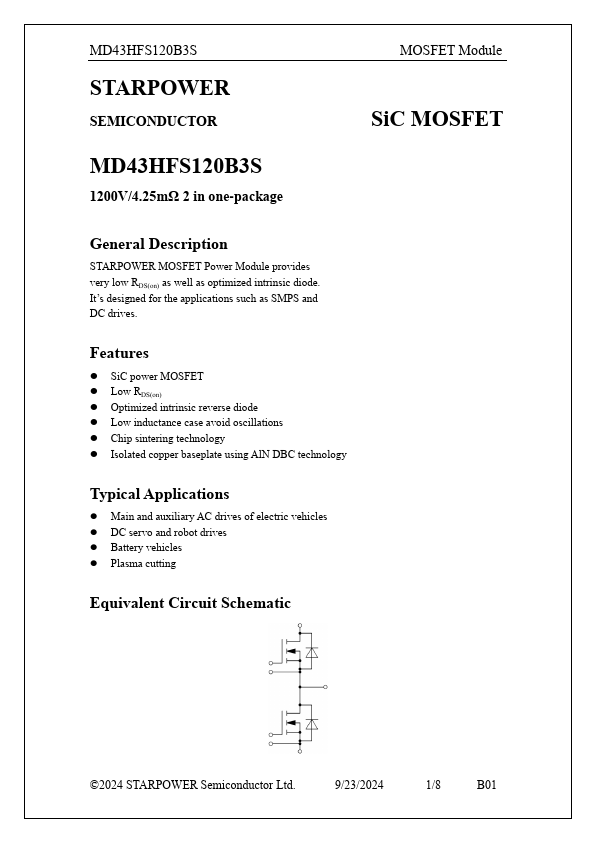

MD43HFS120B3S Features
* SiC power MOSFET
* Low RDS(on)
* Optimized intrinsic reverse diode
* Low inductance case avoid oscillations
* Chip sintering technology
* Isolated copper baseplate using AlN DBC technology Typical Applications
* Main and auxiliary AC drives of electric vehicles
* DC
MD43HFS120B3S Datasheet (401.88 KB)
Datasheet Details
MD43HFS120B3S
STARPOWER
401.88 KB
Sic mosfet.
