KM62256DL-L Datasheet 32K x 8 bit Low Power CMOS Static RAM

Manufacturer: Samsung Semiconductor

Download the KM62256DL-L datasheet PDF. This datasheet also includes the KM62256D variant, as both parts are published together in a single manufacturer document.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (KM62256D_Samsung.pdf) that lists specifications for multiple related part numbers.

General Description

The KM62256D families are fabricated by SAMSUNG′s advanced CMOS process technology.

The families support various operating temperature ranges and have various package types for user flexibility of system design.

The families also support low data

Overview

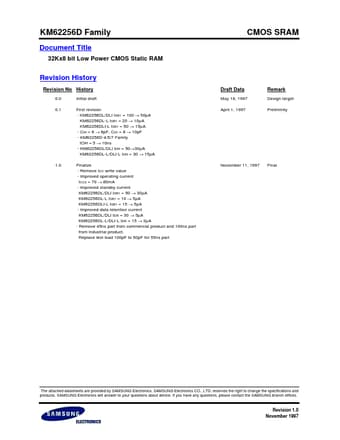

KM62256D Family Document Title 32Kx8 bit Low Power CMOS Static RAM Revision History Revision No History 0.0 Initial draft 0.1 First revision - KM62256DL/DLI ISB1 = 100 → 50µA KM62256DL-L ISB1 = 20 → 10µA KM62256DLI-L ISB1 = 50 → 15µA - CIN = 6 → 8pF, CIO = 8 → 10pF - KM62256D-4/5/7 Family tOH = 5 → 10ns - KM62256DL/DLI IDR = 50→30µA KM62256DL-L/DLI-L IDR = 30 → 15µA 1.0 Finalize - Remove ICC write value - Improved operating current ICC2 = 70 → 60mA - Improved standby current KM62256DL/DLI ISB1 = 50 → 30µA KM62256DL-L ISB1 = 10 → 5µA KM62256DLI-L ISB1 = 15 → 5µA - Improved data retention current KM62256DL/DLI IDR = 30 → 5µA KM62256DL-L/DLI-L IDR = 15 → 3µA - Remove 45ns part from commercial product and 100ns part from industrial product.

Replace test load 100pF to 50pF for 55ns part CMOS SRAM Draft Data May 18, 1997 April 1, 1997 Remark Design target Preliminily November 11, 1997 Final The attached datasheets are provided by SAMSUNG Electronics.

SAMSUNG Electronics CO., LTD.

Key Features

  • Process Technology : TFT.
  • Organization : 32Kx8.
  • Power Supply Voltage : 4.5~5.5V.
  • Low Data Retention Voltage : 2V(Min).
  • Three state output and TTL Compatible.
  • Package Type : 28-DIP-600B, 28-SOP-450 28-TSOP1-0813.4 F/R.
