LV8099CS - Constant-current Driver IC

Description

I2C SCL input pin Enable & reset 1, 2 Ground I2C SDA input pin Power supply pin Output pin A 0.4 0.87 B B1 B2 B3 1.27

1 : Setting the ENA pin to low powers down and resets the IC.

It is necessary to power on the IC by setting the ENA pin to low and hold it high during normal operation.

Features

  • nsfer of the next byte remains in the r.

📥 Download Datasheet

Datasheet Details

Part number LV8099CS
Manufacturer Sanyo Semiconductors
File Size 167.17 KB
Description Constant-current Driver IC
Datasheet download datasheet LV8099CS Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
LV8094CT Piezo Actuator Driver IC ON Semiconductor
LV8011V Forward/Reverse Motor Driver Sanyo Semicon Device
LV8012T Forward/Reverse Motor Driver Sanyo Semicon Device
LV8012T Forward/Reverse Motor Driver ON Semiconductor
LV8013T Forward/Reverse Motor Driver ON Semiconductor

Other Datasheets by Sanyo Semiconductors

Part Number Description
LV8092GQ Bi-CMOS LSI Piezo Actuator Driver IC
LV8095LQ Bi-CMOS IC For VCMs Constant-current Driver IC
LV8098CS Constant-current Driver IC
LV8013T Forward/Reverse Motor Driver
LV8018W 4ch PWM H-bridge Driver

Full PDF Text Transcription

Click to expand full text

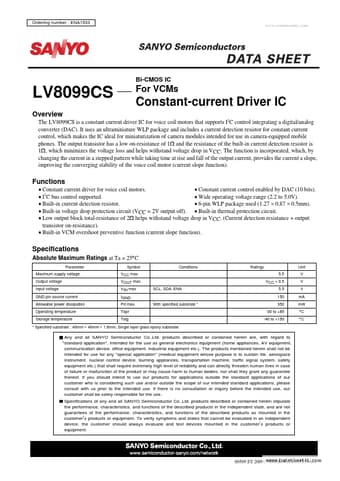

Ordering number : ENA1533 www.DataSheet4U.com Bi-CMOS IC LV8099CS Overview For VCMs Constant-current Driver IC The LV8099CS is a constant current driver IC for voice coil motors that supports I2C control integrating a digital/analog converter (DAC). It uses an ultraminiature WLP package and includes a current detection resistor for constant current control, which makes the IC ideal for miniaturization of camera modules intended for use in camera-equipped mobile phones. The output transistor has a low on-resistance of 1Ω and the resistance of the built-in current detection resistor is 1Ω, which minimizes the voltage loss and helps withstand voltage drop in VCC.
