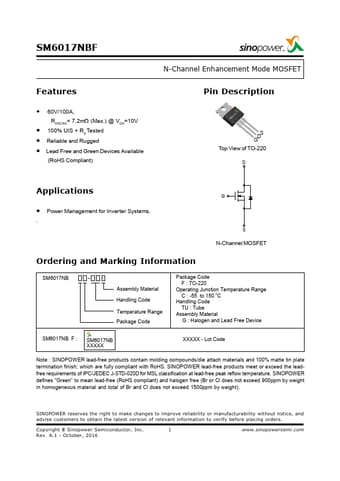

SM6017NBF
SM6017NBF is N-Channel MOSFET manufactured by Sinopower.
Features
- 60V/100A,
RDS(ON)= 7.2m W (Max.) @ VGS=10V
- 100% UIS + Rg Tested
- Reliable and Rugged
- Lead Free and Green Devices Available
(Ro HS pliant)
®
N-Channel Enhancement Mode MOSFET
Pin Description
GDS Top View of TO-220
Applications
- Power Management for Inverter Systems.
.
N-Channel MOSFET
Ordering and Marking Information
SM6017NB
Assembly Material Handling Code
Temperature Range Package Code
Package Code F : TO-220
Operating Junction Temperature Range C : -55 to 150 o C
Handling Code TU : Tube
Assembly Material
G : Halogen and Lead Free Device
SM6017NB F : SM6017NB XXXXX
XXXXX
- Lot Code
Note : SINOPOWER lead-free products contain molding pounds/die attach materials and 100% matte tin plate termination finish; which are fully pliant with Ro HS. SINOPOWER lead-free products meet or exceed the leadfree requirements of IPC/JEDEC J-STD-020D for MSL classification at lead-free peak reflow temperature. SINOPOWER defines “Green” to mean...
