BY1800 - STANDARD RECOVERY RECTIFIER DIODES

This page provides the datasheet information for the BY1800, a member of the BY1600 STANDARD RECOVERY RECTIFIER DIODES family.

Datasheet Summary

Features

  • ! Periodische Spitzensperrspannung ! Kunststoffgehäuse ! Weight approx.
  • Gewicht ca. ! Plastic material has UL classification 94V-0 ! Gehäusematerial UL94V-0 klassifiziert Mechanical Data ! Case: DO-201AD, Molded Plastic ! Terminals: Plated Leads Solderable per MIL-STD-202, Method 208 ! Polarity: Cathode Band ! Weight: 1.2 grams (approx. ) ! Mounting Position: Any ! Marking: Type Number Maximum Ratings TA = 25°C unless otherwise specified Type Typ BY251 BY252 BY253 BY254 BY255 BY1600 B.

📥 Download Datasheet

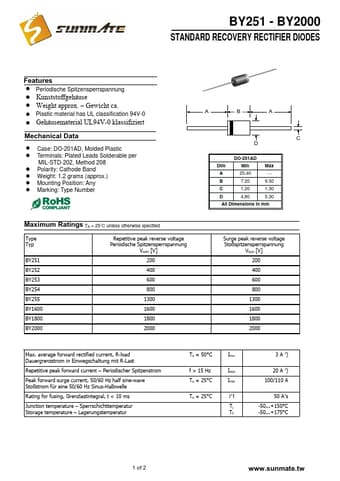

Datasheet preview – BY1800

Datasheet Details

Part number BY1800
Manufacturer Sunmate
File Size 546.09 KB
Description STANDARD RECOVERY RECTIFIER DIODES
Datasheet download datasheet BY1800 Datasheet
Additional preview pages of the BY1800 datasheet.

📁 Similar Datasheet

  • BY1800 - Silicon Rectifiers (Diotec Semiconductor)
  • BY1800 - Standard silicon rectifier diodes (Semikron International)
  • BY189A - RF Power Triode (EEV)
  • BY113 - TECHNICAL SPECIFICATIONS OF SILICON RECTIFIER (Dc Components)
  • BY1161 - RF Power Triodes (e2V)
  • BY12 - High Voltage Si-Rectifiers (Diotec Semiconductor)
  • BY127 - Sillicon Rectifier (UPM)
  • BY127 - Silicon Rectifiers (JGD)
  • BY127 - GENERAL PURPOSE RECTIFIER (MEI SEMI)
  • BY127 - General Purpose Silicon Rectifier (Luguang Electronic)
Other Datasheets by Sunmate
  • BY127M - AXIAL LEADED SILICON RECTIFIER DIODES
  • BY133 - AXIAL LEADED RECTIFIER DIODE
  • BY1600 - STANDARD RECOVERY RECTIFIER DIODES

Full PDF Text Transcription

Click to expand full text
BY251 - BY2000 STANDARD RECOVERY RECTIFIER DIODES Features ! Periodische Spitzensperrspannung ! Kunststoffgehäuse ! Weight approx. – Gewicht ca. ! Plastic material has UL classification 94V-0 ! Gehäusematerial UL94V-0 klassifiziert Mechanical Data ! Case: DO-201AD, Molded Plastic ! Terminals: Plated Leads Solderable per MIL-STD-202, Method 208 ! Polarity: Cathode Band ! Weight: 1.2 grams (approx.) ! Mounting Position: Any ! Marking: Type Number Maximum Ratings TA = 25°C unless otherwise specified Type Typ BY251 BY252 BY253 BY254 BY255 BY1600 BY1800 BY2000 Repetitive peak reverse voltage Periodische Spitzensperrspannung VRRM [V] 200 400 600 800 1300 1600 1800 2000 ABA D DO-201AD Dim Min Max A 25.40 ¾ B 7.20 9.50 C 1.20 1.30 D 4.80 5.
