MG30G1BL2 - Silicon NPN Triple Transistor

Key Features

  • . The Collector is Isolated from Ground. . High DC Current Gain : hpE=100(Min. ) (Ic=30A) . Low Saturation Voltage : VcE(sat)=2V(Max. ) (Ic=30A) . High Speed : tf=2As(Max. ) (Ic=30A) Unit in mm.

📥 Download Datasheet

Datasheet Details

Part number MG30G1BL2
Manufacturer Toshiba
File Size 121.13 KB
Description Silicon NPN Triple Transistor
Datasheet download datasheet MG30G1BL2 Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
MG30G2YK1 TRANSISTOR MODULES ETC
MG30G2YL1 TRANSISTOR MODULES ETC
MG300G1UL1 NPN ETC
MG300H1FL1 NPN ETC
MG300H1UL1 NPN ETC

Other Datasheets by Toshiba

Part Number Description
MG30G1BL3 (MG30Gxxxx) Transistor
MG30G1JL1 (MG30Gxxxx) Transistor
MG30G2CL3 Silicon NPN Triple Transistor
MG30G2DL1 (MG30Gxxxx) Transistor
MG30G6EL1 (MG30Gxxxx) Transistor

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

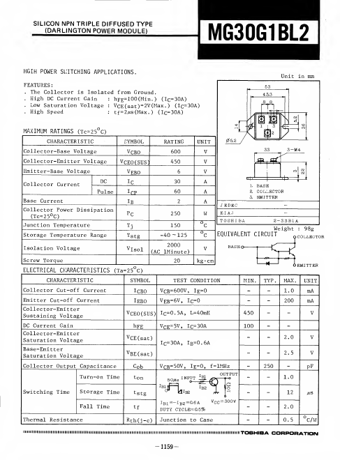

: SILICON NPN TRIPLE DIFFUSED TYPE (DARLINGTON POWER MODULE) IHB30 HGIH POWER SWITCHING APPLICATIONS. FEATURES . The Collector is Isolated from Ground. . High DC Current Gain : hpE=100(Min. ) (Ic=30A) . Low Saturation Voltage : VcE(sat)=2V(Max. ) (Ic=30A) . High Speed : tf=2As(Max. ) (Ic=30A) Unit in mm MAXIMUM RATINGS (Tc=25°C) CHARACTERISTIC SYMBOL RATING UNIT Collector-Base Voltage VCBO 600 V Collector-Emitter Voltage VCEO(SUS) 450 V A Emitter-Base Voltage Vebo 6 V Collector Current DC Pulse Base Current Collector Power Dissipation (Tc=25°C) Junction Temperature Storage Temperature Range ic I flP IB PC T J T stg Isolation Voltage Visol Screw Torque ELECTRICAL CHARACTERISTICS (Ta=25 C) 30 60 2 250 150 -40-125 2000 (AC IMinute) 20 A 1. BASE A 2.
